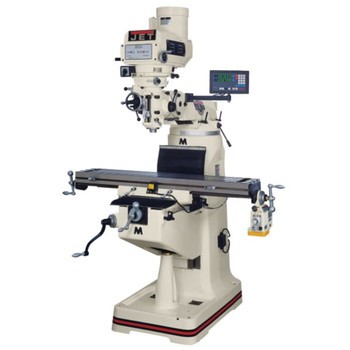

JET Tools 690210 | JTM-2 Mill With ACU-RITE 203 DRO and X and Y-Axis Powerfeeds

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty

JET Tools - 690210 - Features

• Certified Meehanite castings
• Heavy duty splined motor drive
• Internal coolant tank built into base for use with coolant system (Coolant pump not included)
• Large Diameter quill is chromed
• One shot lubrication system
• Precision bored and honed milling head
• Precision hardened and ground ways
• Spindle head is internally cooled
• Three stage power downfeed with automatic stop
• Tolerance test sheet included
• Meehanite casting
• Precision bored and honed milling head
• Large diameter quill is chromed
• Spindle head is internally cooled
• Satin chrome finished dials
• Heavy duty splined motor drive
• One piece quill pinion and shaft
• Three stage power down feed with automatic stop
• Heavy-duty spindle brake
• Precision hardened and ground ways
• Includes:
• JTM-2 Vertical Milling Machine w/ ACU-RITE 200S DRO and X &, Y Powerfeed - 690210

JET Tools - 690210 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	690210
Item Description	JTM-2 Mill With ACU-RITE 203 DRO and X and Y-Axis Powerfeeds
Collet Capacity	1/8 - 7/8
Distance Spindle to Column (Max.) (In.)	19
Max Distance Spindle to Table (In.)	17-1/2
Model Number	JTM-2
Motor (HP)	2 HP, 115/230V, 1Ph
Number of Axis	2
Number of Spindle Speeds	8
Overall Dimensions (L x W x H) (In.)	57 x 64 x 82
Powerfeed	X and Y-Axis
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3-3/8
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Range of Spindle Speeds (RPM)	80 - 2,720
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	5
Style (Type)	Step Pulley R8
T-Slot Centers (In.)	2-1/2
Table Cross Travel (In.)	12-1/2
Table Longitudinal Travel (In.)	23-7/8
Table Longitudinal Travel With Powerfeed (In.)	20-2/7
Table Size (L x W) (In.)	9 x 42
Travel of Knee (In.)	14-1/2
Travel of Ram (In.)	13-3/8
Weight (Lbs.)	2200
Work Table Weight Capacity (Lbs.)	550

JET Tools - 690210 - Documents and Downloads

JET Tools 690210 Specifications Sheet	Click to View
JET Tools 690210 Manual	Click to View
