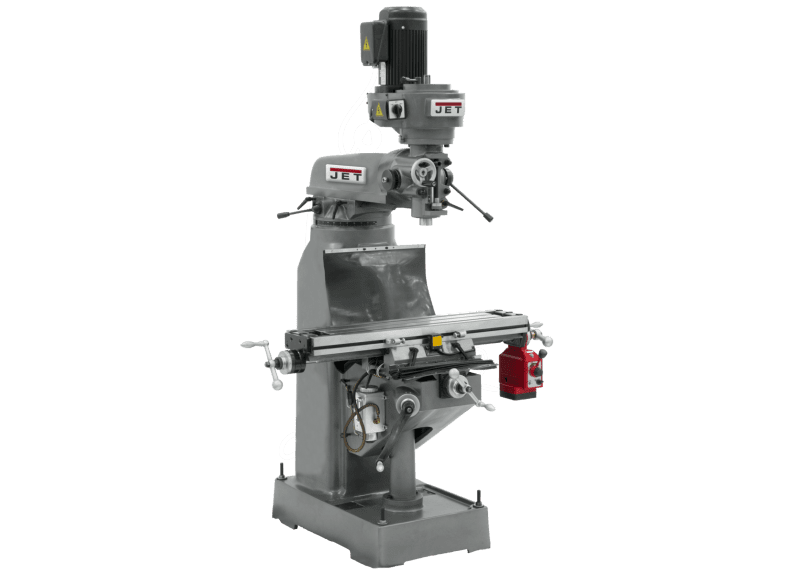

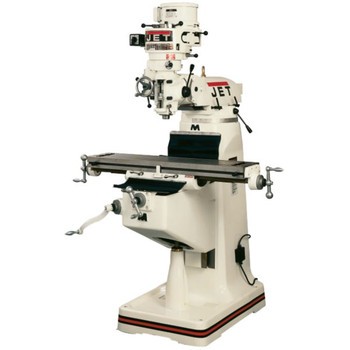

JET Tools 690082 | JTM-1 Step Pulley Milling Machine 230V 3Ph

The Jet JTM-1, 9"x42" Table, 16 Spindle Speeds, 2HP, 3Ph, 230V has a three-stage power down feed with automatic stop, high precision Class 7 spindle bearings and the rugged stability of Certified Meehanite Castings to ensure that every job is up to your standards. The internally cooled spindle head prevents seizing and precision engineering ensures superior results with all the features you've come to expect, all backed by the industry leading JET Two Year Warranty.

JET Tools - 690082 - Features

• Heavy duty splined motor drive
• Internal coolant tank built into base for use with coolant system (Coolant pump not included)
• Large Diameter quill is chromed
• One shot lubrication system
• Precision bored and honed milling head
• Precision hardened and ground ways
• Satin chrome finished dials
• Tolerance test sheet included
• Meehanite casting
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision Class 7 spindle bearings
• Spindle head is internally cooled
• Satin chrome finished dials
• Heavy-duty splined motor drive
• One-piece quill pinion and shaft
• Three-stage power down feed with automatic stop
• Heavy-duty spindle brake
• Precision hardened and ground ways
• Precision ground table
• Adjustable gibs throughout
• Internal coolant tank built into base for use with coolant system (coolant pump not included)
• Tolerance test sheet included
• Includes:
• 9-in x 42-in 2 HP 3-Phase Vertical Milling Machine - 690082
• One-Shot Lubrication System
• Way Covers
• Draw Bar
• Tool Box &, Tools

JET Tools - 690082 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	690082
Item Description	JTM-1 Step Pulley Milling Machine 230V 3Ph
Collet Capacity	1/8 - 7/8
Distance Spindle to Column (Max.) (In.)	19
Max Distance Spindle to Table (In.)	17-1/2
Model Number	JTM-1
Motor (HP)	2 HP, 230V, 3Ph
Number of Spindle Speeds	16
Overall Dimensions (L x W x H) (In.)	57 x 64 x 82
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3-3/8
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Range of Spindle Speeds (RPM)	80 - 5,440
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	5
Style (Type)	Step Pulley R8
T-Slot Centers (In.)	2-1/2
Table Cross Travel (In.)	12-1/2
Table Longitudinal Travel (In.)	23-7/8
Table Longitudinal Travel With Powerfeed (In.)	20-2/7
Table Size (L x W) (In.)	9 x 42
Travel of Knee (In.)	14-1/2
Travel of Ram (In.)	13-3/8
Weight (Lbs.)	2200
Work Table Weight Capacity (Lbs.)	550

JET Tools - 690082 - Documents and Downloads

JET Tools 690082 Specifications Sheet	Click to View
JET Tools 690082 Manual	Click to View
