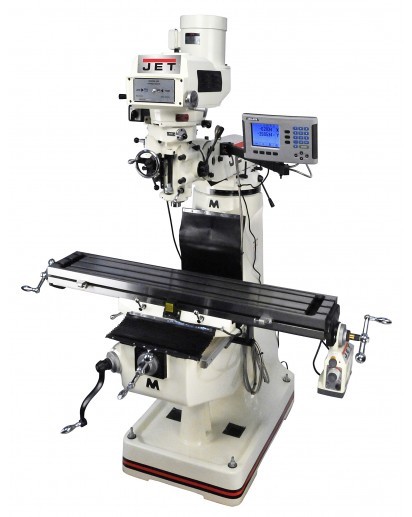

JET Tools 690068 | JTM-4VS-1 Mill With 3-Axis ACU-RITE 203 DRO (Quill) With X and Y-Axis Powerfeeds

Constructed using the Certified Meehanite casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.

JET Tools - 690068 - Features

• Adjustable gibs throughout
• Heavy duty splined motor drive
• Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
• Large Diameter quill is chromed
• One shot lubrication system
• Precision hardened and ground ways and table
• Spindle head is internally cooled
• Tolerance test sheet included
• Meehanite casting
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision Class 7 spindle bearings
• Chrome plated motor shaft with lower bearing support
• Spindle head is internally cooled
• Satin chrome finished dials
• Heavy-duty splined motor drive
• One piece quill pinion and shaft
• Three stage power donwfeed with automatic stop
• Heavy duty spindle brake
• Locks on all movable surfaces
• Precision hardened and ground ways and table
• Adjustable gibs throughout
• Internal coolant tank built into castingbase for use with coolant system (Coolant pump not included)
• Tolerance test sheet included
• One-lubrication system
• Way covers
• Draw bar
• Tool box with tools

JET Tools - 690068 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	690068
Item Description	JTM-4VS-1 Mill With 3-Axis ACU-RITE 203 DRO (Quill) With X and Y-Axis Powerfeeds
Collet Capacity	1/8 - 7/8
Distance Spindle to Column (Max.) (In.)	19
Max Distance Spindle to Table (In.)	17-1/2
Model Number	JTM-4VS-1
Motor (HP)	2 HP, 115/230V, 1Ph
Number of Axis	3 (Quill)
Overall Dimensions (L x W x H) (In.)	66 x 63 x 85
Powerfeed	X and Y-Axis
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3-3/8
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Range of Spindle Speeds (RPM)	60 - 4,200
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	5
Style (Type)	Variable Speed R8
T-Slot Centers (In.)	2-1/2
Table Cross Travel (In.)	12
Table Longitudinal Travel (In.)	34
Table Longitudinal Travel With Powerfeed (In.)	28-3/4
Table Size (L x W) (In.)	9 x 49
Travel of Knee (In.)	14-1/2
Travel of Ram (In.)	13-3/8
Weight (Lbs.)	2420
Work Table Weight Capacity (Lbs.)	660
