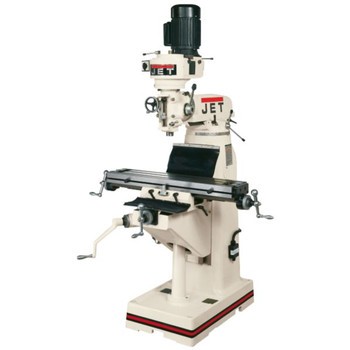

JET Tools 690036 | JVM-836-1 Step Pulley Milling Machine, 1-1/2 HP, 1Ph 115/230V

The precision bored and honed milling head, coupled with the hardened and ground 8" x 36" table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty




https://www.autotoolworld.com/assets/icons/features.jpg

JET Tools - 690036 - Features

  • Graduated scale on column
  • Hardened and ground precision table
  • Head tilts left or right
  • High precision spindle bearings
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision ground dovetail ways
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision spindle bearings
  • Over 10-in of front to back ram travel
  • Locks on all movable surfaces
  • Hardened and ground precision table
  • Head tilts left or right
  • Graduated scale on column
  • Precision ground dovetail ways
  • Includes:
  • 8-in x 36-in 1-1/2 HP 1-Phase Vertical Milling Machine - 690036
  • One-Shot Lubrication System
  • Way Covers
  • Draw Bar
  • Tool Box &, Tools



https://www.autotoolworld.com/assets/icons/specs.jpg

JET Tools - 690036 - Specifications

Brand NameJET Tools
Manufacturer Part Number690036
Item DescriptionJVM-836-1 Step Pulley Milling Machine, 1-1/2 HP, 1Ph 115/230V
Collet Capacity1/8 - 7/8
Distance Spindle to Column (Max.) (In.)15-3/4
Max Distance Spindle to Table (In.)13-3/4
Model NumberJVM-836-1
Motor (HP)1-1/2 HP, 115/230V, 1Ph
Number of Spindle Speeds5
Overall Dimensions (L x W x H) (In.)55 x 52 x 78
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)240 - 1,550
Spindle Taper (In. x TPI)R-8
Spindle Travel (In.)5
Style (Type)Step Pulley R8
T-Slot Centers (In.)2-1/2
Table Cross Travel (In.)9-1/2
Table Longitudinal Travel (In.)22-1/4
Table Longitudinal Travel With Powerfeed (In.)18
Table Size (L x W) (In.)7-7/8 x 35-3/4
Travel of Knee (In.)14
Travel of Ram (In.)10-1/2
Weight (Lbs.)1617
Work Table Weight Capacity (Lbs.)500



https://www.autotoolworld.com/assets/icons/pdf.jpg

JET Tools - 690036 - Documents and Downloads

JET Tools 690036 Specifications SheetClick to View
JET Tools 690036 Manual (1)Click to View
JET Tools 690036 Manual (2)Click to View
