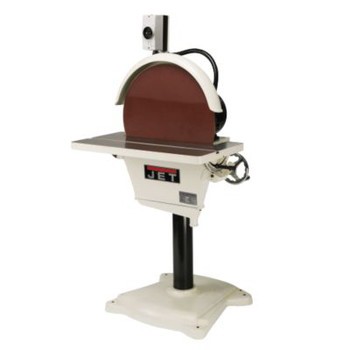

JET Tools 577010 | J-4421-2, 20" Disc Grinder 220V 3Ph

This large surface disc grinder from JET is designed to put a smooth finish or grind to remove stock on just about anything that comes through your shop. An extra-large tilting table ensures user flexibility perhaps previously unimagined, and added safety features ensure your shop stays accident free. JET backs this machine with its industry-leading Two Year Warranty.

JET Tools - 577010 - Features

• Extra large tilting table
• Extra large tilting table lowers completely below disc for use of the entire disc surface
• Low voltage protection switch
• Precision table raiser utilizes a rack and gear mechanism for effortless operation
• Rigid column and heavy duty base
• Tilting table capability adds flexibility of 45° forward and 15° backward on positive lock rack and gear
• Tilting table lowers completely below disc for use of the entire disc surface
• Wrap over guard for added safety
• Tilting table capability adds flexibility of 45 degrees forward and 15 degrees backward on positive lock rack and gear
• Table can be lowered below the disc to accommodate large work pieces
• Direct drive motor
• Low voltage protection switch
• Rigid column and heavy duty base
• Miter gauge
• Extra large tilting table lowers completely below disc for use of the entire disc surface
• Wrap over guard for added safety
• Includes:
• J-4421-2, 20-in Disc Sander 3Ph, 220V - 577010

JET Tools - 577010 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	577010
Item Description	J-4421-2, 20" Disc Grinder 220V 3Ph
Model Number	J-4421-2
Disc Diameter (In.)	20.0000
Motor (HP)	3 HP, 220V, 3Ph
Motor Voltage (V.)	230
Overall Dimensions (L x W x H) (In.)	30 x 28 x 53
Prop 65	Cancer and Reproductive Harm
Style (Type)	Disc
Weight (Lbs.)	400
Length	30 in.
Width	28.5 in.
Height	52 in.
Weight	400 lbs.
Disc Diameter	20-in
Disc Table Size	27-1/2-in x 10-1/2-in
Table Slots	3/8-in x 3/4-in

JET Tools - 577010 - Documents and Downloads

JET Tools 577010 Specifications Sheet	Click to View
JET Tools 577010 Manual (1)	Click to View
JET Tools 577010 Manual (2)	Click to View
