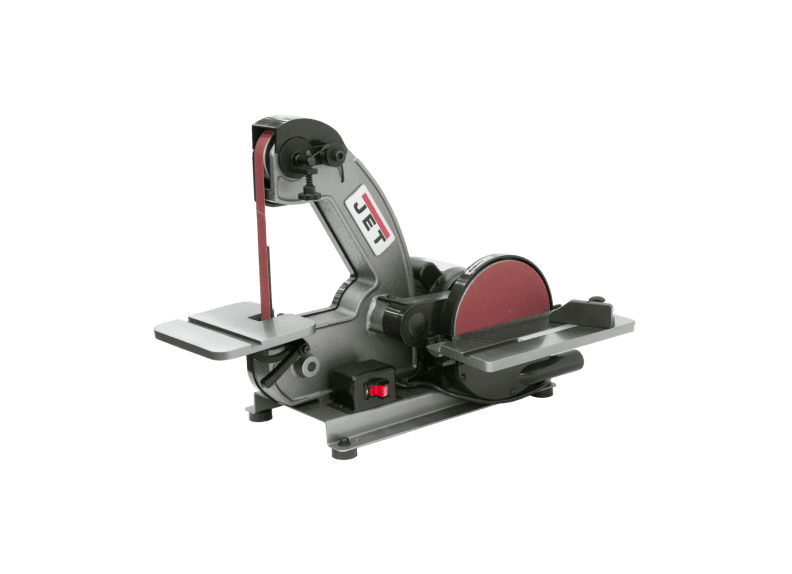

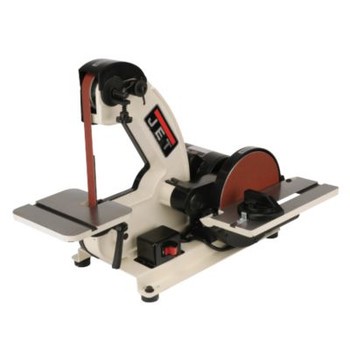

JET Tools 577003 | J-4002 1 x 42 Bench Belt and Disc Sander

Another JET combination Bench Belt and Disc Sander designed to deliver the superior finish. The design of this machine permits sanding, grinding and finishing of outside curves or odd-shaped pieces. Heavy-duty base, cast construction and cast iron tilting table means you are getting the very best JET has to offer.

JET Tools - 577003 - Features

• Abrasive belt unit removes material and finishes at the same time, allowing the operator to get into small openings, plus handle odd shapes and angles
• Adjustable dust deflector and dust chute
• Cast iron construction
• Deluxe miter gauge that turns and locks for common angles, 45° both left and right
• Heavy-duty steel base and rubber feet
• Hinged idler wheel cover
• Removable platen allows for sanding, grinding or finishing of outside curves or odd shaped work pieces on the belt
• Hinged idler wheel cover
• Power take off, allows for mounting an optional flex shaft, can be used for carving, drum sanding, deburing and dozens of other jobs
• Deluxe miter gauge turns and locks for common angles 45 left and right
• Abrasive belt unit does the work of a jig-saw, copying saw or hand file while removing material and finishing at the same time, allows the operator to get into small oppenings plus handle odd shapes and angles
• Removable plate allows for sanding, grinding or finishing of outside curves or odd shaped work pieces on the belt
• Grind, sand or finish large work pieces on the disc unit fast and efficiently, combined with the tilting table, the operator can chamfer or bevel, table is slotted to accept miter gauge
• Delivers sharper, faster cutting actions, easy belt changes and a variety of grit belts, keeps the machine cool, so one can complete a wide range of jobs
• When using non-woven synthetic belts the operator can blend, buff or finish metal surfaces in addition to defuzzing wood surfaces
• Deluxe miter gauge
• Cast iron tilting table
• Cast construction
• Heavy duty steel base and rubber feet
• Removable plate
• Adjustable dust deflector and dust chute
• Includes:
• J-4002 1 x 42-in Belt and 8-in Disc Sander - 577003

JET Tools - 577003 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	577003
Item Description	J-4002 1 x 42 Bench Belt and Disc Sander
Model Number	J-4002
Belt Size (W x L) (In.)	1 x 42
Belt Table Size (In.)	6-1/8 x 7-1/8
Disc Diameter (In.)	8.0000
Belt Table Tilt (Deg.)	45° Out
Motor (HP)	1/3 HP, 115V, 1Ph
Overall Dimensions (L x W x H) (In.)	21 x 22 x 14
Prop 65	Cancer and Reproductive Harm
Table Slots (In.)	5/8
Weight (Lbs.)	62
Belt Speed	3000
Belt Table Size	6-1/8-in x 7-1/8-in
Disc Diameter	8-in
Disc Table Size	4-in x 10-in
Dust Collection Outlet Diameter	1-1/2-in
Machine Dimensions	15-in x 24-1/2-in x 19-1/2-in

JET Tools - 577003 - Documents and Downloads

JET Tools 577003 Specifications Sheet	Click to View
JET Tools 577003 Manual	Click to View
