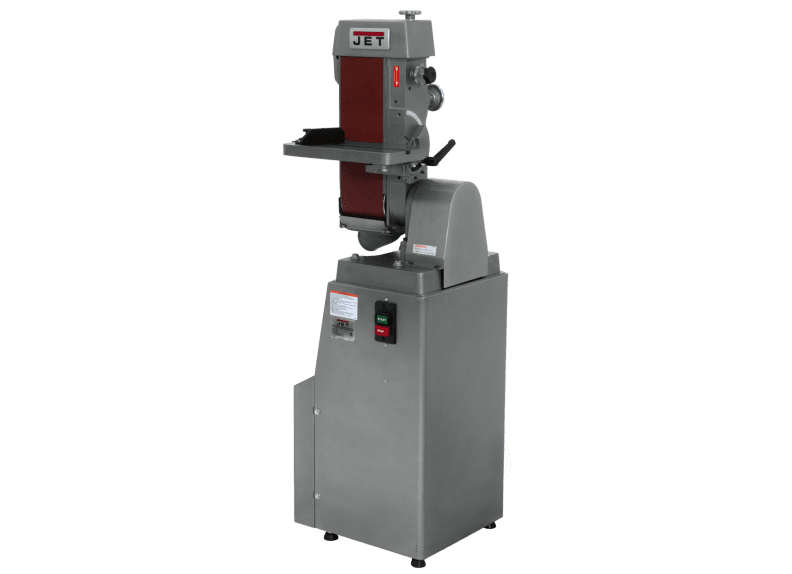

JET Tools 414601 | J-4301A, 6" x 48" Industrial Belt Finishing Machine 3Ph

This JET Industrial Belt Finishing Machine starts with a heavy-duty, one piece steel stand and miter gauge, but offers users so much more in the way of versatility for high-performance results. Variable position locks for both vertical and horizontal belt head adjustments, removable/adjustable heavy-duty cast iron platen and tilting table permit premium contour finishes, as well as plain and compound mitering. A sleek design means it fits anywhere on your shop floor.

JET Tools - 414601 - Features

• Adjustable dust deflector and dust chute
• Adjustable, heavy-duty, cast iron removable platen
• Belt head adjusts vertically and horizontally
• Completely enclosed drums and guarded sanding belt
• Fine thread adjustments for simple and easy belt tracking
• Removable upper belt guard for contour finishing
• Table tilts 45° out and 20° in for all angle finishing operations
• Variable position locks
• Variable position locks, the belt head adjusts vertically and horizontally
• Table tilts 45 degrees out and 20 degrees in for all angle finishing operations
• Adjustable dust deflector and dust chute
• Completely enclosed drums and a guarded sanding belt
• Fine thread adjustment for simple and easy belt tracking
• Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge
• Will handle virtually all the finishing operations in a production line
• Adjustable heavy duty cast iron removable platen
• Removable upper guard for contour finishing
• Variable position locks, belt head adjusts vertically, horizontally and in between
• Miter gauge
• Heavy duty one piece steel stand
• Includes:
• J-4301A, 6-in x 48-in Industrial Belt Mach 3Ph - 414601

JET Tools - 414601 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	414601
Item Description	J-4301A, 6" x 48" Industrial Belt Finishing Machine 3Ph
Model Number	J-4301A
Belt Table Size (In.)	7-3/8 x 14-3/4
Belt Table Tilt (Deg.)	45 Out, 20 In
Motor (HP)	1-1/2 HP, 230V, 3Ph
Overall Dimensions (L x W x H) (In.)	29 x 16 x 58
Prop 65	Cancer and Reproductive Harm
Style (Type)	Belt
Table Slots (In.)	5/8
Weight (Lbs.)	215
Length	30.5 in.
Width	23 in.
Height	49.8 in.
Weight	215 lbs.
Belt Size	6-in x 48-in
Belt Speed (SFPM)	2,850
Belt Table Tilt	45 Degrees Out / 20 Degrees In
