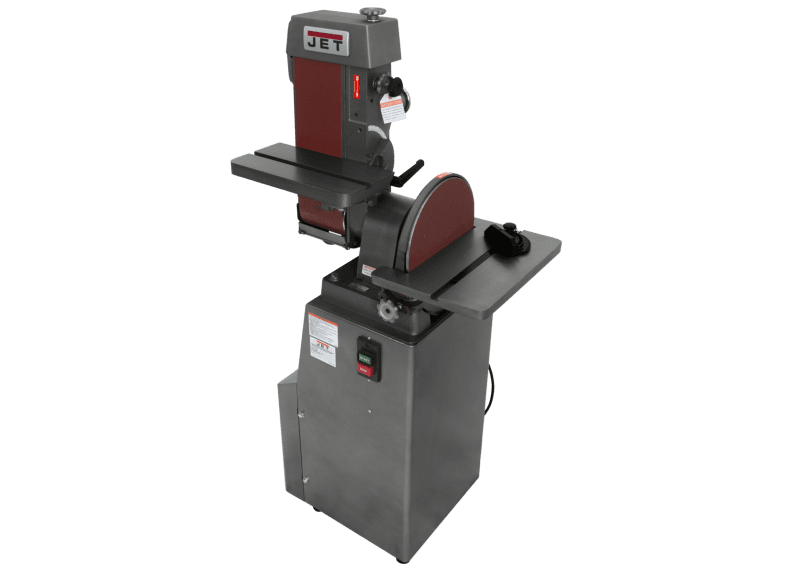

JET Tools 414552 | J-4200A-2, 6" x 48" Industrial Combination Belt and 12" Disc Finishing Machine 230V 1Ph

High-speed precision and amazing versatility. This rugged piece of equipment has a belt that operates at any angle, and conforms to curves, angles or circular finishing and grinding operations. Machinists who take great pride in their work prefer the JET Industrial Combination Belt & Disc Finishing Machine

JET Tools - 414552 - Features

• Adjustable dust collector and dust chute
• Belt head adjusts vertically and horizontally
• Belt operates at any angle
• Completely enclosed drums and guarded sanding belt
• Fully machined, balanced disc
• Large cast iron slotted table
• Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge
• Removable upper belt guard for contour finishing
• Variable position locks
• Belt operates at any angle
• Powered by a heavy duty UL/CSA approved, 1-1/2 HP TEFC motor
• Contour finishing, mitering, flat finishing, beveling and precision finishing
• Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge
• Fully machined, balanced disc runs vibration free
• Adjustable heavy duty cast iron removable platen
• Removable upper guard for contour finishing
• Variable position locks, belt head adjusts vertically, horizontally and in between
• Large cast iron slotted table
• Adjustable dust collector and dust chute
• Completely enclosed drums and a guarded sanding belt
• Heavy duty one piece steel stand
• Includes:
• J-4200A-2, Industrial Belt and Disc 230V - 414552

JET Tools - 414552 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	414552
Item Description	J-4200A-2, 6" x 48" Industrial Combination Belt and 12" Disc Finishing Machine 230V 1Ph
Model Number	J-4200A-2
Belt Table Size (In.)	7-3/8 x 14-3/4
Disc Diameter (In.)	12.0000
Belt Table Tilt (Deg.)	45 Out, 20 In
Motor (HP)	1-1/2 HP, 230V, 1 Ph
Overall Dimensions (L x W x H) (In.)	26 x 19 x 58
Prop 65	Cancer and Reproductive Harm
Weight (Lbs.)	250
Length	23.5 in.
Width	30.5 in.
Height	50 in.
Weight	250 lbs.
Belt Speed	2,850
Belt Table Size	7-3/8-in x 14-3/4-in
Disc Diameter	12-in
Disc Table Size	12-in x 16-3/8-in
Motor 4200A	1-1/2 HP, 115V, 1 Ph
Motor 4202A	1-1/2 HP, 230V, 3 Ph
Platen	6-1/4-in x 14-3/4-in
Table Slots	3/8-in x 3/4-in
