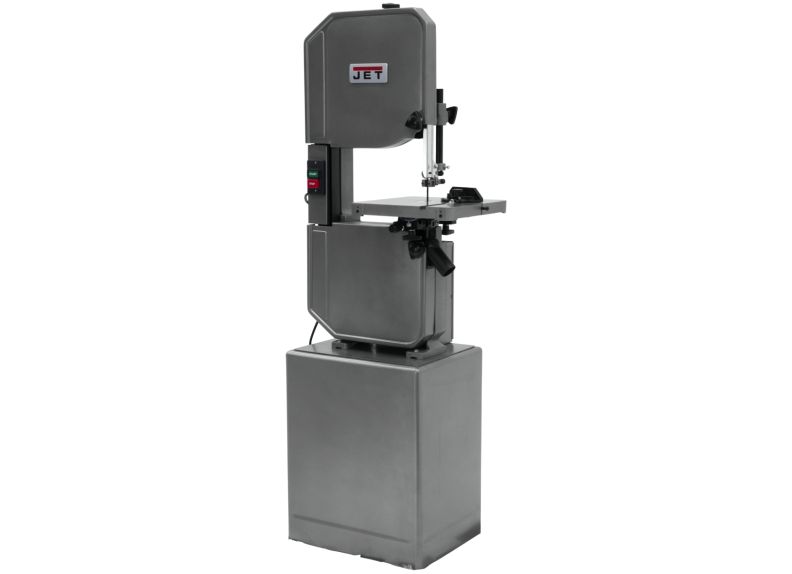

JET Tools 414502 | J-8201VS, 14" Metal/Wood Vertical Variable Speed Bandsaw

The line of JET Metal/Wood Vertical Bandsaws offers machine and fabrication professionals all the power and precision in a package that meets their individual specifications. JET has engineered a gear box that permits cutting of a great variety of materials, then backed it with the industry leading two year warranty

JET Tools - 414502 - Features

• 14 TPI metal cutting blade included
• 6 TPI wood cutting blade included
• Adjustable table
• Conveniently located on/off switch
• Gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal and plastic cutting applications
• Solid one piece steel base for extra stability
• Variable speed drive system
• Variable speed drive system (8201VS)
• Cast iron frame
• Solid, one-piece steel base for extra stability
• Conveniently located on/off switch
• Variable speed drive system (8201VS & 8203VS)
• Exclusive gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal plastic cutting applications
• Miter gauge
• Dust chute
• Saw blades (wood & metal)
• Adjustable table
• These saws are specifically designed to effectively cut a variety of materials including wood, plastic, Bakelite, composites, ferrous and non-ferrous metals
• Capable of cutting and re-sawing
• Can cut delicate curves in both thick and thin stock
• Includes:
• J-8201VS, 14-in Vertical Variable Speed Band Saw 1Ph - 414502

JET Tools - 414502 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	414502
Item Description	J-8201VS, 14" Metal/Wood Vertical Variable Speed Bandsaw
Blade Speeds Wood (SFPM)	2600.0000
Blade Width (Min.-Max.) (In.)	1/8 - 3/4
Height Capacity (Max.) (In.)	6
Model Number	J-8201VS
Motor (HP)	1 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)	26 x 18-1/2 x 67
Prop 65	Cancer and Reproductive Harm
Table Height (In.)	44
Table Size (L x W) (In.)	14 x 14
Table Tilt to Left (Deg.)	15
Table Tilt to Right (Deg.)	45
Throat Capacity (In.)	13-1/2
Under Guide (In.)	6
Under Guide with Riser Block (In.)	12
Weight (Lbs.)	325
Length	79 in.
Width	31 in.
Height	41 in.
Weight	973 lbs.
Cutting Capacity	10-in x 16-in
Min. Length	135-in
Motor	2HP, 460V, 3Ph, Prewired 460V

JET Tools - 414502 - Documents and Downloads

JET Tools 414502 Specifications Sheet	Click to View
JET Tools 414502 Manual	Click to View
