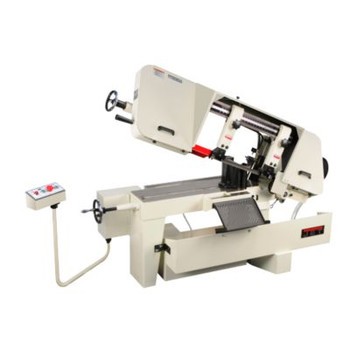

JET Tools 414478 | 10" x 16" Horizontal Bandsaw | J-7040

Exclusive 6-point blade guide assemblies and swivel control panel on this rugged JET saw enhance overall function and performance.

JET Tools - 414478 - Features

• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• Adjustable Material Stop
• Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
• Patented 3-Jaw vise with rapid action moveable jaw for faster set up
• Swing away control panel houses major saw controls
• Variable speed drive system
• Variable speed drive system allows the operator to fine tune the blade speed fast and easily
• Swing away control panel
• Exclusive 6 contact point blade adjustable guide assemblies
• Combined with the side bearings are carbide pads, the back of the blade ride on two mounted carbide pads on a pivot shaft so both bearings share the load equally
• Counterbalanced feed system is controlled by a dual system of a counterbalanced spring working with a hydraulic cylinder
• 1-in Bi-metal blades
• Cast iron blade wheels
• Includes:
• J-7040, 3Ph 10-in x 16-in Horizontal Band Saw - 414478

JET Tools - 414478 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	414478
Item Description	10" x 16" Horizontal Bandsaw | J-7040
Blade Speeds (SFPM)	100 - 350
Blade Wheel Diameter (In.)	14
Drive	Variable Speed
Model Number	J-7040
Motor (HP)	2 HP, 230V, 3Ph
Overall Dimensions (L x W x H) (In.)	75-1/2 x 33 x 41
Prop 65	Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)	6-1/2 x 11
Rectangle at 90 Degrees (In.)	10 x 10 and 7 x 16
Round at 45 Degrees (In.)	10
Round at 90 Degrees (In.)	10
Vise Swivels (Deg.)	45°
Weight (Lbs.)	927
Weight	1067 lbs.
Blade Speed	82 132 210 and 330 SFPM
Cutting Capacity	10-in x 14-in
Floor Space Required	26-in x 69-in x 44-in
Motor	2 HP, 3 Ph 230/460V
