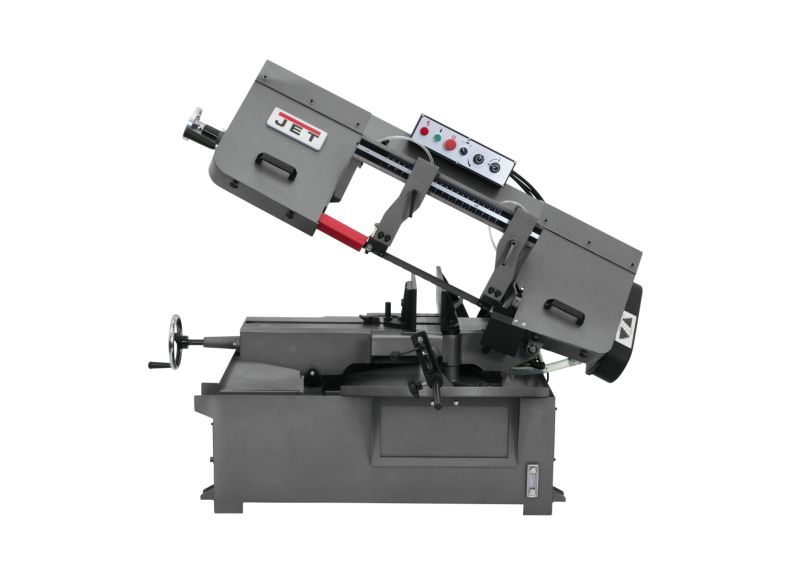

JET Tools 414477 | MBS-1014W-3, 10" x 14" Horizontal Mitering Bandsaw

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

JET Tools - 414477 - Features

• Adjustable Material Stop
• Built-in, self-propelled blade brush extends blade life
• Carbide blade guides with roller bearings
• Coolant is distributed through the blade guides
• Fully adjustable hydraulic downfeed with separate on/off control valve
• Large , easy-to-read scale for accurate positioning of the saw head
• Large hand wheel and built-in gauge provides easy blade tensioning
• Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured
• Quick positioning vise reduces set-up time
• Unique design features a swivel head for miter cutting structural, pipe and tubing
• Miter head swivels from 90 Degrees to 45 while the stock remains in the same position
• Large, easy-to-read scale for positioning saw head
• Quick-positioning vise lessens set-up time
• Large hand wheel and built-in gauge for easy blade tensioning
• Coolant is distributed through the blade guides
• Blade brush is built-in and self-propelled
• Fully adjustable hydraulic down feed with separate on/off valve
• Includes:
• 10 in. 3 HP 3-Phase Horizontal Mitering Band Saw - 414477
• 4/6VT Bi-Metal Blade
• Carbide Blade Guides w/ Rollers
• Automatic Shut-Off
• Coolant System
• Adjustable Material Stop

JET Tools - 414477 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	414477
Item Description	MBS-1014W-3, 10" x 14" Horizontal Mitering Bandsaw
Bed Height (In.)	25
Blade Wheel Diameter (In.)	14
Drive	Belt Drive
Model Number	MBS-1014W-3
Motor (HP)	3 HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.)	26 x 69 x 44
Prop 65	Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)	9 x 8-1/2
Rectangle at 90 Degrees (In.)	10 x 14
Round at 45 Degrees (In.)	9
Round at 90 Degrees (In.)	10
Vise Swivels (Deg.)	45°
Weight (Lbs.)	946

JET Tools - 414477 - Documents and Downloads

JET Tools 414477 Specifications Sheet	Click to View
JET Tools 414477 Manual	Click to View
