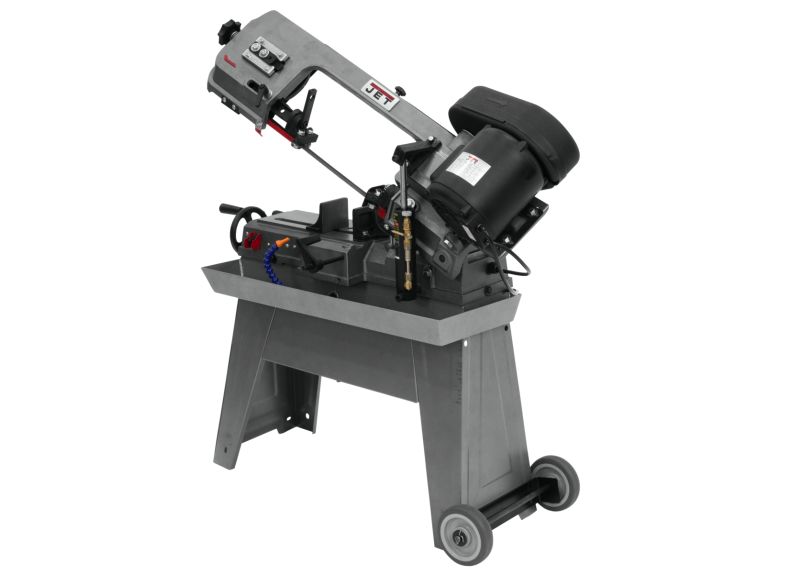

JET Tools 414461 | J-3130, 5" x 8" Horizontal Bandsaw

Adjustable guides and hydraulic feed, steel worm gear and bronze drive gear, and auto shutoff at end of the cut are some of the features that makes this JET Hydraulic Band Saw a must for any professional machine shop. The built-in handle and wheels makes relocation within your workspace quick and easy.

JET Tools - 414461 - Features

• Adjustable blade guides with side eccentric shaft with ball bearings with rear-ball bearings
• Adjustable Material Stop
• Blade drive is a steel, heat treated worm driving a bronze worm gear in an oil bath
• Blade guides with side eccentric shaft with ball bearings
• Fully adjustable hydraulic downfeed system
• Wheels and handle for easy movement
• Adjustable hydraulic feed system
• Adjustable ball bearing guides
• Heat treated steel worm gear and bronze drive gear
• Automatic shut off at end of cut
• Includes wheel kit which consists of handle and wheels for convenient moving to various work stations
• Includes:
• J-3130 5-in x 8-in Horizontal Dry Band Saw 1/2 HP, 115V, 1-Phase - 414461
• 1/2-in Carbon Steel Blade
• Wheel Kit
• Eccentric Shaft and Ball Bearing Side Blade Guides
• Ball Bearing Rear Blade Guides
• Adjustable Material Stop

JET Tools - 414461 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	414461
Item Description	J-3130, 5" x 8" Horizontal Bandsaw
Blade Speeds (SFPM)	85, 125, 200
Blade Wheel Diameter (In.)	7-1/2
Drive	Belt Drive
Model Number	J-3130
Motor (HP)	1/2 HP, 115V, 1Ph
Overall Dimensions (L x W x H) (In.)	37 x 16 x 37
Prop 65	Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)	4-1/2 x 5
Rectangle at 90 Degrees (In.)	7-1/2 x 5
Round at 45 Degrees (In.)	4-1/2
Round at 90 Degrees (In.)	5
Vise Swivels (Deg.)	45°
Weight (Lbs.)	134
Length	37.5 in.
Width	18 in.
Height	17.5 in.
Weight	143 lbs.
Motor	1/2HP, 115V, 1Ph, 1725RPM

JET Tools - 414461 - Documents and Downloads

JET Tools 414461 Specifications Sheet	Click to View
JET Tools 414461 Manual	Click to View
