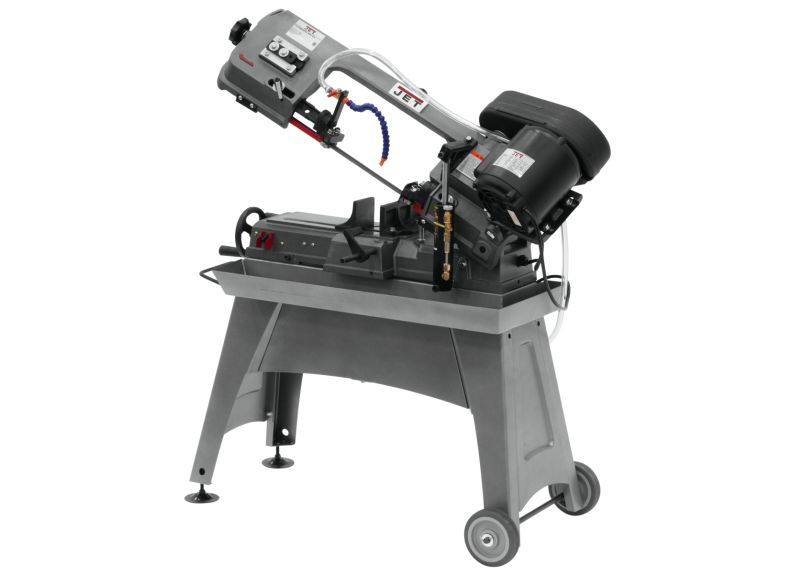

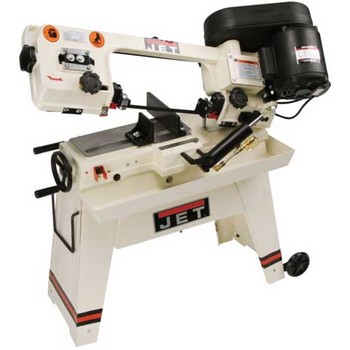

JET Tools 414453 | J-3230, 5" x 8" Horizontal Bandsaw

Adjustable guides and hydraulic feed, steel worm gear and bronze drive gear, and auto shutoff at end of the cut are some of the features that makes this JET Hydraulic Band Saw a must for any professional machine shop. The built-in handle and wheels makes relocation within your workspace quick and easy.

JET Tools - 414453 - Features

• Adjustable blade guides with side eccentric shaft with ball bearings with rear-ball bearings
• Adjustable Material Stop
• Blade drive is a steel, heat treated worm driving a bronze worm gear in an oil bath
• Blade guides with side eccentric shaft with ball bearings
• Fully adjustable hydraulic downfeed system
• Heavy Duty 14-gauge steel stand with shelf has been redesigned for stability, rigidity and ease of use.
• Wheels and handle for easy movement
• Adjustable hydraulic feed system
• Adjustable ball bearing guides
• Heat treated steel worm gear and bronze driver gear
• Automatic shut off at end of cut
• Handles and wheels for convenient moving to various work stations
• Eccentric shaft and ball bearing guides
• Includes:
• J-3230, 5-in x 8-in Horizontal Wet Band Saw - 414453
• 1 Gallon Capacity Coolant System with Hose, Flexible Nozzle, Shut Off Valve, Tank and Baffle
• 1/2-in Carbon Steel Blade
• Adjustable Material Stop

JET Tools - 414453 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	414453
Item Description	J-3230, 5" x 8" Horizontal Bandsaw
Blade Speeds (SFPM)	85, 125, 200
Blade Wheel Diameter (In.)	7-1/2
Drive	Belt Drive
Gross Weight (Lbs)	165
Model Number	J-3230
Motor (HP)	1/2 HP, 115V, 1Ph
Net Weight (Lbs.)	160
Overall Dimensions (L x W x H) (In.)	37 x 16 x 37
Prewired Voltage (V.)	115
Prop 65	Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)	4-1/2 x 5
Rectangle at 90 Degrees (In.)	7-1/2 x 5
Round at 45 Degrees (In.)	4-1/2
Round at 90 Degrees (In.)	5
Vise Swivels (Deg.)	45°
Weight (Lbs.)	160
Weight	160 lbs.
Motor	1/2 HP, 115V 1 Ph, 1725 RPM

JET Tools - 414453 - Documents and Downloads

JET Tools 414453 Specifications Sheet	Click to View
JET Tools 414453 Manual (1)	Click to View
JET Tools 414453 Manual (2)	Click to View
