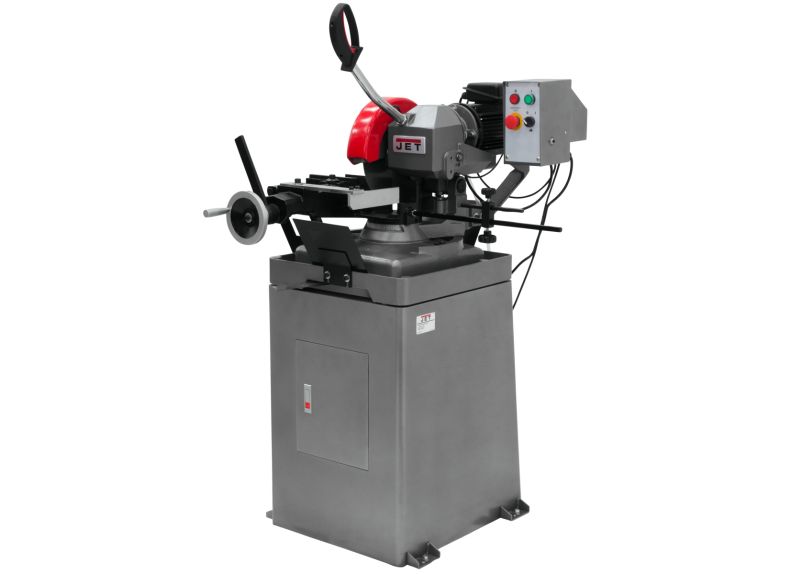

JET Tools 414226 | CS-275, 275mm Ferrous Manual Cold Saw

JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry leading full service Two Year Warranty

JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you've come to expect from JET.

JET Tools - 414226 - Features

• Blade drive reduction gearbox operates in an oil bath for increased durability
• Cast iron frame
• Flood coolant system
• Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
• Fully adjustable material depth stop for sawing repeatability and increased production
• Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
• Heavy-duty cast iron frame base with easy access storage provides a stable cutting platform
• Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
• Quick tension and release mitering capabilities with stops at 45° right, 45° left
• Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
• Heavy duty cast iron frame base standard
• Cast dual pivot saw head
• Two cutting speeds
• Hardened and ground worm and wheel gear box
• 1.5 gallon coolant tank capacity
• Integral flood-style coolant system
• 30 inch material length stop
• Safety guards
• Capable of slotting
• Includes:
• CS-275, Manual Cold Saw 275mm - 414226

JET Tools - 414226 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	414226
Item Description	CS-275, 275mm Ferrous Manual Cold Saw
Maximum Vise Opening (In.)	4
Model Number	CS-275
Motor (HP)	1-1/2HP, 230V, 3Ph 2/4P 6.1/7.2 Amps
Prop 65	Cancer and Reproductive Harm
Solid Rectangle at 45 Degrees (In.)	2-3/16 x 2
Solid Rectangle at 90 Degrees (In.)	3-3/32 x 2
Solid Round at 45 Degrees (In.)	3-19/64
Solid Round at 90 Degrees (In.)	3-19/64
Solid Square at 45 Degrees (In.)	2-3/16 x 2-3/16
Solid Square at 90 Degrees (In.)	2-1/2 x 2-1/2
Style (Type)	Ferrous
Tubing Rectangle at 45 Degrees (In.)	2-3/16 x 2
Tubing Rectangle at 90 Degrees (In.)	3-3/32 x 2
Tubing Round at 45 Degrees (In.)	3-19/64
Tubing Round at 90 Degrees (In.)	3-19/64
Weight (Lbs.)	360
