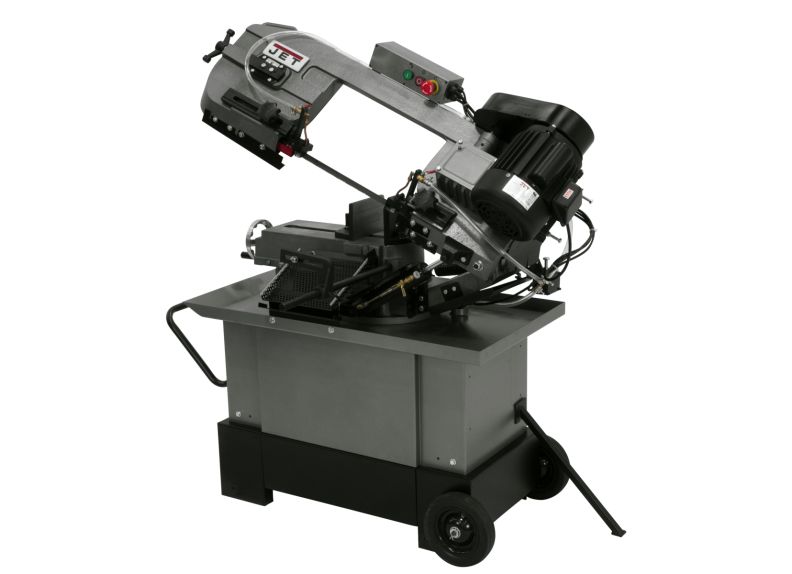

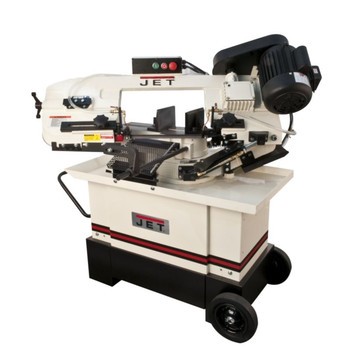

JET Tools 413451 | HVBS-710S, 7" x 10-1/2" Horizontal/Vertical Mitering Bandsaw

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

JET's 413451 HVBS-710S 7-in x 10-1/2-in Mitering Bandsaw is a great 7-in saw with mitering capabilities. The bandsaw's swivel head allows for both horizontal and vertical miter cutting and the two large 8-in wheels and handle make this it easy to move anywhere in your shop.

JET Tools - 413451 - Features

• Adjustable Material Stop
• Built-in, self-propelled blade brush extends blade life
• Fully adjustable hydraulic downfeed system
• Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
• Heavy-duty cast iron saw bow and bed
• Large 8" wheels and handle for easy movement
• Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured
• Quick-positioning vise with fully adjustable jaws
• Wheels and handle for easy movement
• Swivel head for both horizontal and vertical miter cutting
• UL listed motor
• Heavy cast-iron bow and head
• Hydraulic downfeed for ease of cut
• Hardened and ground worm gear
• Upgraded roller cabinet with built in chip tray and 8-in wheels
• Automatic shut-off after cut
• Includes:
• 7-in x 10-1/2-in Mitering Band Saw - 413451
• Quick-Lock Vise
• 3/4-in Bi-Metal Blade 5/8 TPI
• Coolant System
• Adjustable Material Stop
• Chip Brush

JET Tools - 413451 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	413451
Item Description	HVBS-710S, 7" x 10-1/2" Horizontal/Vertical Mitering Bandsaw
Bed Height (In.)	23
Blade Wheel Diameter (In.)	11-3/4
Drive	Belt Drive
Model Number	HVBS-710S
Motor (HP)	1 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)	51 x 22-1/2 x 41
Prewired Voltage (V.)	115
Prop 65	Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)	4-3/4 x 4
Rectangle at 90 Degrees (In.)	7 x 10-1/2
Round at 45 Degrees (In.)	4
Round at 90 Degrees (In.)	7
Vise Swivels (Deg.)	45°
Weight (Lbs.)	396
Weight	396 lbs.
Motor	1 HP, 115/230V

JET Tools - 413451 - Documents and Downloads

JET Tools 413451 Specifications Sheet	Click to View
JET Tools 413451 Manual	Click to View
