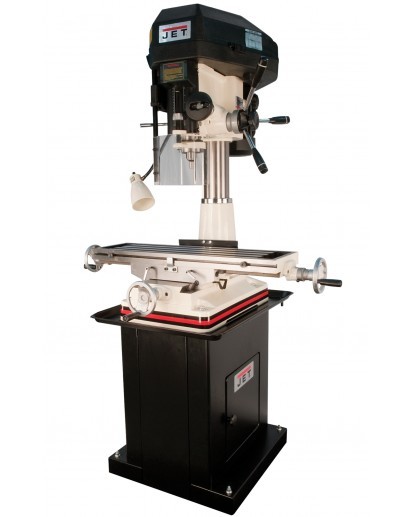

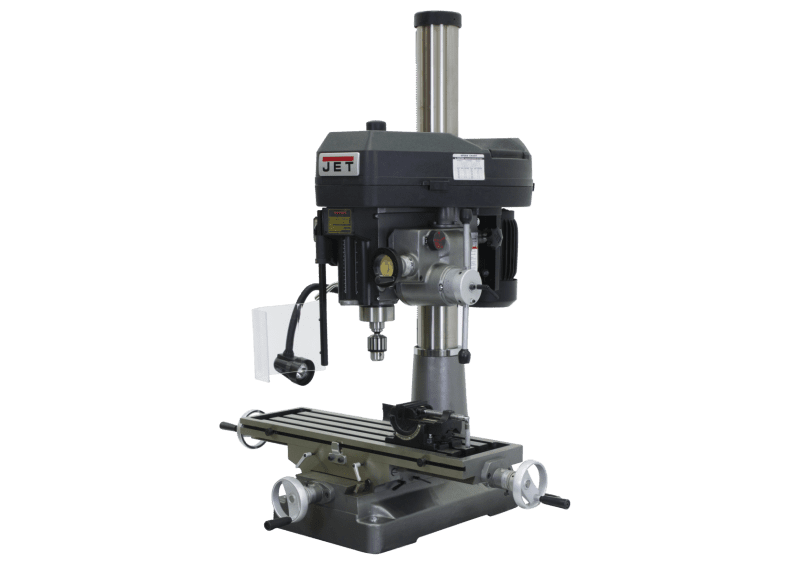

JET Tools 350402 | JMD-18PFN Mill/Drill With ACU-RITE 203 DRO

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

JET Tools - 350402 - Features

• 1/2" Drill chuck, chuck arbor
• 360° head swivel
• Adjustable carbide facemill
• Base taper allows for easier clean up
• Easy to read internal depth gauge
• Heavy-duty power downfeed with manual feed (JMD-18PFN)
• Mill Drill Stand, p/n 320020, shown in some images, is optional
• One-piece cast iron column for added support
• Positive quick-stop knob and easy to read internal depth gauge
• UL Listed
• MILLING/DRILLING MACHINES
• One-piece cast iron column for added support
• Belt cover "quick slide latch allows faster belt adjustment to change spindle speeds
• Base taper allows for easier clean-up
• Larger hand wheel knobs
• UL Listed motor
• Extra large worktable
• Heavy-duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth
• New positive quick-stop knob and easy-to-read internal depth gauge (external on JMD-15)
• 360 degree head swivel
• Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
• Three power down feeds (JMD-18PFN .004", .007", .01")
• Worklamp included
• Adjustable carbide facemill
• Drill press angle vise
• 1/2 drill chuck, chuck arbor
• Draw bar included

JET Tools - 350402 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	350402
Item Description	JMD-18PFN Mill/Drill With ACU-RITE 203 DRO
Base Dimensions (In.)	15-3/4 x 23-3/4
Column Diameter (In.)	4-1/2
Face Mill Capacity (In.)	3
Max Distance Spindle to Table (In.)	28
Model Number	JMD-18PFN
Motor (HP)	2 HP, 230V Only, 1 Ph
Number of Spindle Speeds	12
Overall Dimensions (L x W x H) (In.)	47 x 40 x 51
Powerfeed	Down Feed
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3
Quill Down Feed Rates (IPR)	0.0047, 0.007, 0.001
Range of Spindle Speeds (RPM)	150 - 3,000
Spindle Taper (In. x TPI)	R-8
Spindle Travel Auto (In.)	4-1/4
Spindle Travel (In.)	5
Swing (In.)	15-7/8
T-Slot Centers (In.)	1-13/16
T-Slots Number and Size (In.)	4 and 5/8
Table Longitudinal Travel (In.)	20-1/2
Table Size (L x W) (In.)	9-1/2 x 31-3/4
Weight (Lbs.)	700
Work Table Weight Capacity (Lbs.)	400
