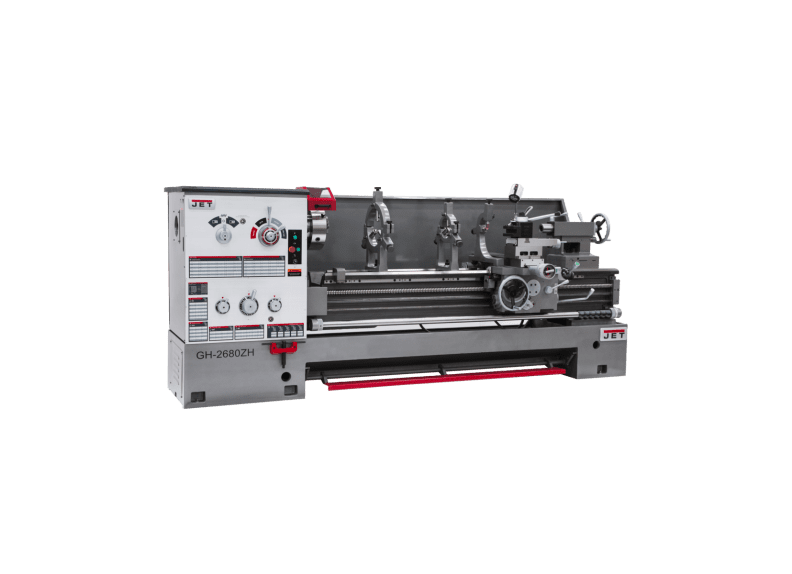

JET Tools 321861 | GH-2680ZH With Newall DP700 DRO

Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/8" Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

JET Tools - 321861 - Features

• 12" 3 Jaw scroll chuck with top reversing jaws
• 2 Steady rests with roller bearings
• Bed ways are induction hardened and ground for durability
• E-Stop on Carriage for added safety
• Electronic Chuck Key Holder
• Fitted top mats to hold tooling
• Full Length Splash Guard
• Heavy-duty tailstock and quill
• Large easy to use foot brake
• Rapid power traverse to cross slide and carriage
• Large 4-1/8" Spindle Bore
• Turns 89 different thread sizes
• Clutch operated headstock with all headstock gears hardened and ground
• Bed ways are induction hardened and ground for durability
• Heavy-duty tailstock and quill
• One piece heavy-duty cast iron base and bed
• 12 speeds in range 36-1600 RPM
• Rapid power traverse to cross slide and carriage
• Headstock-gearbox designed for quick setup of thread turning operation without changing gears.
• STANDARD EQUIPMENT:
• 12" 3-Jaw Direct Mount Scroll Chuck with Jaws
• 16" 4-Jaw Chuck
• Face Plate
• 2 Steady Rests
• Follow Rest
• 4 Way Tool Post
• Coolant System
• Full Length Splash Guard
• Halogen Work Lamp

JET Tools - 321861 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	321861
Item Description	GH-2680ZH With Newall DP700 DRO
Carriage Travel (In.)	72-1/2
Compound Slide Travel (In.)	5-1/2
Drive	Geared Head
Length of Gap (In.)	8
Max Tool Size (In.)	1-1/4 x 1-1/4
Model Number	GH-2680ZH
Motor (HP)	10 HP, 230/460, 3 Ph
Number of Inch Threads	48.0000
Number of Longitudinal and Cross Feed Rates	65
Number of Metric Threads	22.0000
Number of Spindle Speeds	12
Overall Dimensions (L x W x H) (In.)	138 x 43 x 57
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	.010 - .0404
Range of Inch Threads (TPI)	2-30
Range of Longitudinal Feeds (IPR)	.0023 - .0937
Range of Metric Threads	1 - 14
Range of Spindle Speeds (RPM)	36 - 1,600
Size	26 x 80
Spindle Bore (In.)	4-1/8
Spindle Mount	D1-8
Spindle Taper with Sleeve	MT-5
Steady Rest Capacity (In.)	Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
Style (Type)	Engine - Large Spindle Bore
Swing Over Bed (In.)	26
Swing Over Cross Slide (In.)	16-1/2
Swing Through Gap (In.)	34
Tailstock Spindle Travel (In.)	6
Taper in Tailstock Spindle	MT-5
Weight (Lbs.)	8514
Width of Bed (In.)	16
