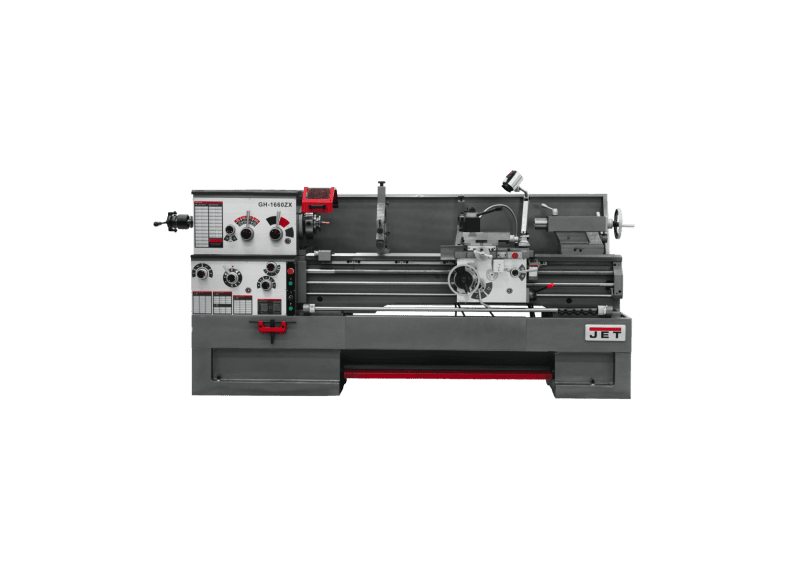

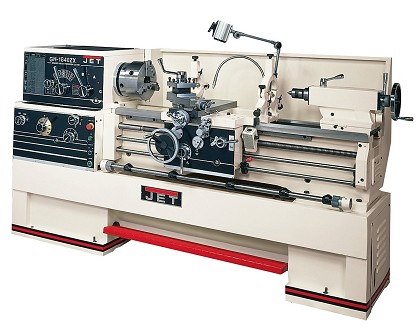

JET Tools 321573 | GH-1660ZX With Collet Closer

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10" three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.




https://www.autotoolworld.com/assets/icons/features.jpg

JET Tools - 321573 - Features

  • Articulating LED work lamp
  • Centrally located controls with jog button
  • Electronic Chuck Key Holder
  • Five position automatic carriage stop increases productivity
  • Full length splash guard and coolant return
  • Large capacity steady rest with ball bearing tips
  • Large easy to use foot brake
  • Mounting pads and levelers
  • Removable gap allows large diameter work
  • Tool box and adjusting tools



https://www.autotoolworld.com/assets/icons/specs.jpg

JET Tools - 321573 - Specifications

Brand NameJET Tools
Manufacturer Part Number321573
Item DescriptionGH-1660ZX With Collet Closer
Carriage Travel (In.)55-9/16
Compound Slide Travel (In.)5-1/8
Cross Slide Travel (In.)9
DriveGeared Head
Length of Gap (In.)12
Max Tool Size (In.)1 x 1
Model NumberGH-1660ZX
Motor (HP)7-1/2 HP, 230/460, 3 Ph
Number of Inch Threads61.0000
Number of Longitudinal and Cross Feed Rates46/31
Number of Metric Threads24.0000
Number of Spindle Speeds12
Overall Dimensions (L x W x H) (In.)115 x 44 x 66
Prop 65Cancer and Reproductive Harm
Range of Cross Feeds (IPR).0006 - .0360
Range of Inch Threads (TPI)1-5/8 - 72
Range of Longitudinal Feeds (IPR).0015 - .0900
Range of Metric Threads.05 - 20
Range of Spindle Speeds (RPM)25 - 1,800
Size16 x 60
Spindle Bore (In.)3-1/8
Spindle MountD1-8
Spindle Taper with SleeveMT-7 (MT-5)
Steady Rest Capacity (In.)1/2 - 3-1/2
Style (Type)Engine - Large Spindle Bore
Swing Over Bed (In.)16
Swing Over Cross Slide (In.)10
Swing Through Gap (In.)25-1/2
Tailstock Spindle Travel (In.)5
Weight (Lbs.)5795
Width of Bed (In.)13-1/8



https://www.autotoolworld.com/assets/icons/pdf.jpg

JET Tools - 321573 - Documents and Downloads

JET Tools 321573 Specifications SheetClick to View
JET Tools 321573 ManualClick to View
