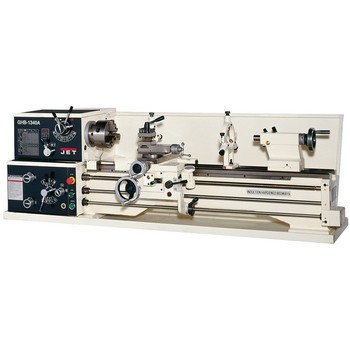

JET Tools 321125 | GHB-1340A With ACU-RITE 203 DRO and Collet Closer

JET geared head bench lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances as well as fast and easy speed changes. Headstock is constantly oiled during operation which keeps maintenance and repair needs to a minimum. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.

JET Tools - 321125 - Features

• 6" 3-jaw direct mount scroll chuck
• Compound and cross slide have backlash elimination
• Gear box gives wide inch threading and feed capabilities with no gear changes
• Hardened and ground gears are featured in the headstock and gearbox

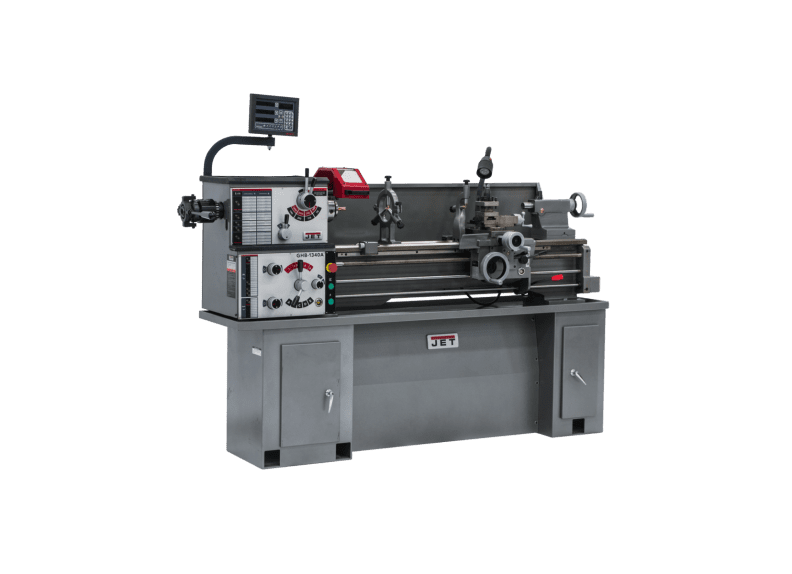

• Image shown with optional bench, p/n 321443AK
• Independent lead screw and feed rod
• Spindle actuation control is apron mounted
• Tailstock may be offset for turning taper
• Tolerance test certificate included
• V-Way bed design is induction hardened and ground
• Enclosed gearbox design provides smooth, quiet operation
• Fast, easy speed changes
• Hardened and ground gears are featured in the headstock and gearbox
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Headstock is constantly oiled during operation
• Gearbox gives wide inch threading and feed capabilities with no gear changes
• V-way bed design is induction hardened and ground
• Gap bed design section provided for larger diameter work
• Independent leadscrew and feed rod
• Spinde actuation control is apron mounted
• Compound and cross slide have backlash elimination
• Adjustable gibs are incorporated in the carriage and slideways
• Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
• Includes:
• GHB-1340A Lathe with 200S DRO and Collet Closer Installed - 321125
• Oil Pan
• 6-in 3-Jaw Direct Mount Scroll Chuck
• 8-in 4-Jaw Independent Chuck
• 12-in Face Plate
• Steady and Follow Rest
• Metric Change Gear
• Splash Guard
• Centers and Headstock Center Sleeve
• Threading Dial
• Tool Box and Tools

JET Tools - 321125 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	321125
Item Description	GHB-1340A With ACU-RITE 203 DRO and Collet Closer
Carriage Travel (In.)	35
Compound Slide Travel (In.)	2-11/16
Drive	Geared Head
Length of Gap (In.)	8
Max Tool Size (In.)	5/8 x 5/8
Model Number	GHB-1340A
Motor (HP)	2 HP, 230V, 1Ph
Number of Inch Threads	38.0000
Number of Longitudinal and Cross Feed Rates	40
Number of Metric Threads	23.0000
Number of Spindle Speeds	8
Overall Dimensions (L x W x H) (In.)	79 x 28-1/2 x 30
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	.0006 - .0130
Range of Inch Threads (TPI)	3-1/2 - 80
Range of Longitudinal Feeds (IPR)	.0018 - .0374
Range of Metric Threads	.45 - 10
Range of Spindle Speeds (RPM)	70 - 2,000
Size	13 x 40
Spindle Bore (In.)	1-3/8
Spindle Mount	D1-4
Spindle Taper with Sleeve	MT-5 (MT-3)
Steady Rest Capacity (In.)	2-3/4
Style (Type)	Bench - Geared Head
Swing Over Bed (In.)	13
Swing Over Cross Slide (In.)	7-25/32
Swing Through Gap (In.)	18-3/4
Tailstock Spindle Travel (In.)	3-3/4
Taper in Tailstock Spindle	MT-3
Weight (Lbs.)	1154
Width of Bed (In.)	7-3/8

JET Tools - 321125 - Documents and Downloads

JET Tools 321125 Specifications Sheet	Click to View
JET Tools 321125 Manual	Click to View
