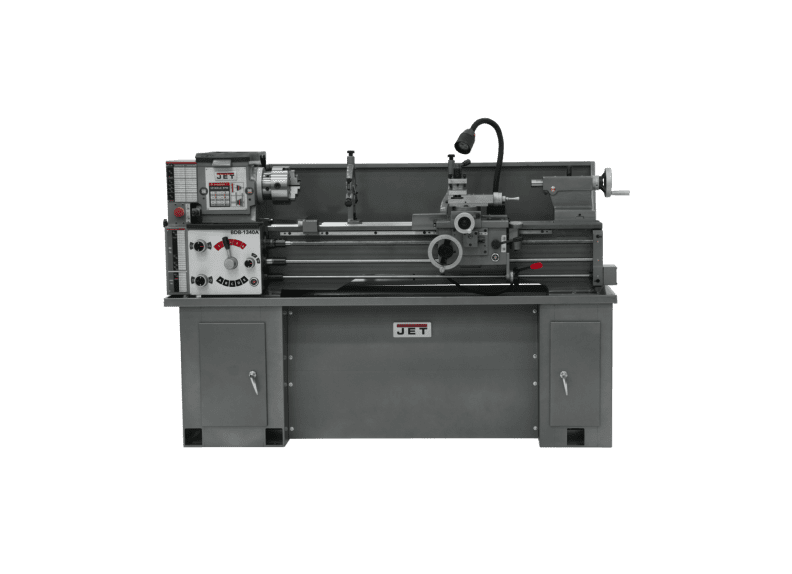

JET Tools 321102AK | BDB-1340A With CBS-1340A Stand

JET Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full-length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick-change gearbox allows for fast and easy gear changes for metric threading. The optional bench shown in the image is compatible with JET Lathes and is available for purchase. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.

JET Tools - 321102AK - Features

• 6" 3-jaw direct mount scroll chuck with top reversing jaws
• Automatic feeding and threading are fully interlocked
• Carriage mounted spindle control lever
• Centers and headstock center sleeves
• Feed selectors travel in grooved ways
• Independent lead screw and feed rod
• Low voltage motor controls
• Spindle is supported by precision tapered roller bearings
• Tailstock may be offset for turning taper
• Tolerance test certificate included
• One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
• Enclosed gearbox design provides smooth, quiet operation
• Fast, easy speed changes
• Low voltage motor controls
• Helical cut headstock gears reduce noise
• Change gears allow metric threading
• Spindle is supported by precision tapered roller bearings
• V-way bed is induction hardened and ground
• Gap bed section provided for large diameter work
• Independent leadscrew and feed rod
• T-Slotted compound slide with four-way tool post
• Carriage mounted spindle control lever
• Automatic feeding and threading are fully interlocked
• Feed selectors travel in grooved ways
• Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
• Oil pan included
• Tolerance test certificate included
• Includes:
• BDB-1340A, Lathe with CBS-1340A Stand - 321102AK
• 8-in 4-Jaw Chuck
• 12-in Face Plate
• Four-Way Tool Post
• Steady and follow rest
• Metric Change Gear
• Centers with Headstock Center Sleeve
• Threading dial
• Tool Box

JET Tools - 321102AK - Specifications

Brand Name	JET Tools
Manufacturer Part Number	321102AK
Item Description	BDB-1340A With CBS-1340A Stand
Carriage Travel (In.)	35
Compound Slide Travel (In.)	2-11/16
Drive	Belt
Length of Gap (In.)	8
Max Tool Size (In.)	5/8 x 5/8
Model Number	BDB-1340A
Motor (HP)	2 HP, 230V, 1Ph
Number of Inch Threads	38.0000
Number of Longitudinal and Cross Feed Rates	38
Number of Metric Threads	23.0000
Number of Spindle Speeds	12
Overall Dimensions (L x W x H) (In.)	71 x 32 x 45
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	0.0006-0.013
Range of Inch Threads (TPI)	3-1/2 - 80
Range of Longitudinal Feeds (IPR)	0.0018-0.0374
Range of Metric Threads	0.45-10
Range of Spindle Speeds (RPM)	60 - 1,240
Size	13 x 40
Spindle Bore (In.)	1-3/8
Spindle Mount	D1-4
Spindle Taper with Sleeve	MT-5 (MT-3)
Steady Rest Capacity (In.)	2-5-8
Style (Type)	Bench
Swing Over Bed (In.)	13
Swing Over Cross Slide (In.)	7-25/32
Swing Through Gap (In.)	18-3/4
Tailstock Spindle Travel (In.)	3-3/4
Taper in Tailstock Spindle	MT-3
Weight (Lbs.)	1175
Width of Bed (In.)	7-3/8

JET Tools - 321102AK - Documents and Downloads

JET Tools 321102AK Specifications Sheet	Click to View
JET Tools 321102AK Manual	Click to View
