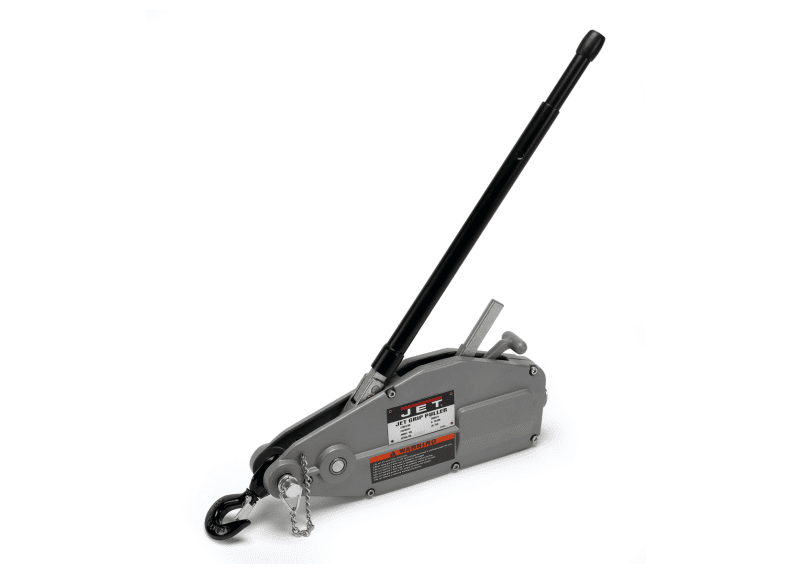

JET Tools 286515K | JG-150A, 1-1/2 Ton Grip Puller with Cable

JET JG Series Grip Pullers incorporate proven industrial designs that lift, lower, stretch or pull heavy loads. Available in multiple configurations, JET Grip Pullers are manufactured with lightweight zinc-plated steel to resist corrosion and a multiple clutch brake system increasing safety on the jobsite. JET JG Series Grip Pullers comply with ANSI/ASME B30.21 standards.

JET Tools - 286515K - Features

• Double sealed ratchet brake system increases safety on the jobsite
• Available in 3/4, 1-1/2 and 3-Ton pulling capacities
• Designed to lift, lower, stretch, or pull heavy loads
• Double Sealed Ratchet Brake System
• Lightweight zinc coated steel is used to resist corrosion
• Industrial quality grip puller designed to lift, lower or pull heavy loads
• Easy-to-use in any direction, angle, or length of pull or lift
• Multiple clutch brake system holds load in any position
• Safety shear pin in telescopic handle provides automatic overload protection
• Heavy-duty safety hooks with spring-loaded latches
• Complies with ANSI/ASME B30.21 standards
• NOTE: Not for use in an explosive environment.
• Includes:
• 1-1/2-Ton Heavy-Duty Wire Rope Grip Puller w/ Cable - 286515K

JET Tools - 286515K - Specifications

Brand Name	JET Tools
Manufacturer Part Number	286515K
Item Description	JG-150A, 1-1/2 Ton Grip Puller with Cable
Handle Length (In.)	41
Lifting Capacity (Lbs.)	3000
Lifting Speed (FPM)	10
Model Number	JG-150A
Net Weight (Lbs.)	48
Prop 65	Cancer and Reproductive Harm
Winching /Pulling Capacity (Lbs.)	5500
Wire Rope Diameter (In.)	7/16
Distance Per Stroke (In.)	2-3/8
Overall Dimensions (L x W x H / in.)	21-1/2 x 3-7/8 x 11
Weight	48 lbs.
Capacity	1.5 Tons
Distance per Stroke	2-3/8-in
Lifting Capacity	3,300 lbs.

JET Tools - 286515K - Documents and Downloads

JET Tools 286515K Specifications Sheet	Click to View
JET Tools 286515K Manual	Click to View
