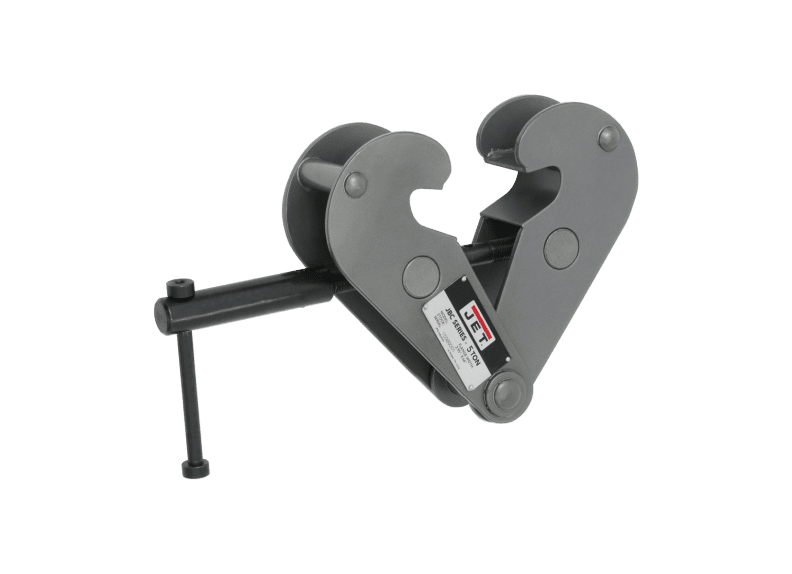

JET Tools 252750 | JBC-5, 5-Ton Beam Clamp

JET JBC Series features a more robust construction for increased durability and longer life in demanding industrial environments. The JBC Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 10 inches wide. Each JET Beam Clamp Jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams.

Brand Name - 252750 - Features

• Clamp jaw is designed to distribute the load away from the beam flange edge
• Clamp jaw is designed to distribute the load away from the beam flange edge, increasing safety
• Complies with ANSI / ASME B30.17 and B30.20 standards
• Larger, thicker diameter pins for increased durability and life
• Load tested to 125% of capacity with certificate
• Robust construction for increased durability and longer life in demanding industrial environments
• Used for quick mounting of a hoist on a broad range of beams up to 10-5/8 inches wide for increased versatility
• Welded all-steel frame and powder coat finish
• Welded all-steel frame and powder coat finish provide maximum durability and protection
• Welded, enclosed pockets provide greater stability and durability where the beam clamp attaches to the beam/structure
• 5-Micron replacement filter bag for JET model 708626GK 1,100 CFM dust collector.

JET Tools - 252750 - Specifications

Brand Name	JET Tools
Capacity (Lbs.)	11000
Load Capacity (Metric Tons)	5
Load Capacity (Tons)	5
Maximum Beam Flange Width (In.)	10-5/8
Minimum Beam Flange Width (In.)	5
Model Number	JBC-5
Prop 65	Cancer and Reproductive Harm
Weight (Lbs.)	34
