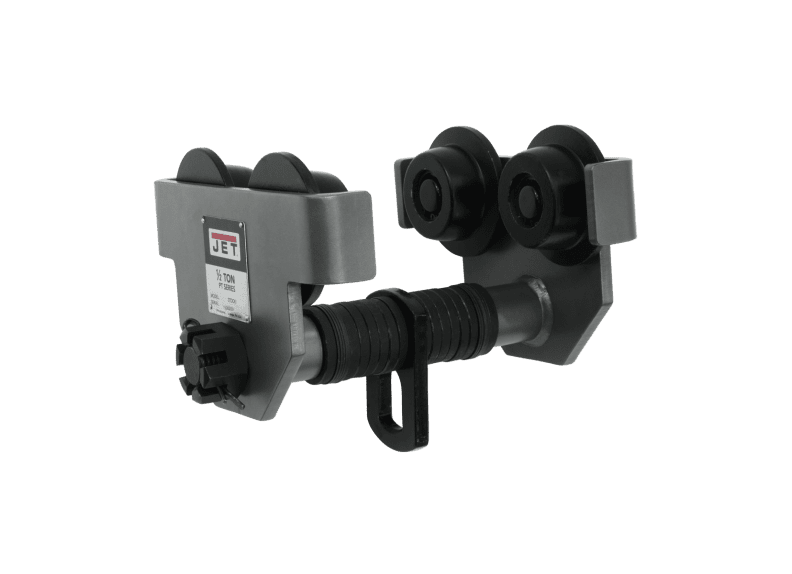

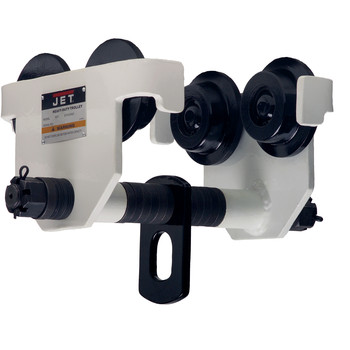

JET Tools 252005 | 1/2-PT, 1/2-Ton Heavy Duty Manual Trolley

JET PT Series heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JET Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.

Hang loads securely and easily when you've got the Jet HD-2T 2-Ton Heavy-Duty Beam Clamp (202720). Built for construction and commerical uses, it's proof tested, and it mounts easily and securely either horizontally or vertically to a broad range of wide-flange H and standard I beams.

Brand Name - 252005 - Features

• Built-in bumper guards on the side plates increase safety and extend trolley life
• Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
• Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
• Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
• Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
• Built for construction and commercial uses
• Proof tested
• Mounts easily and securely either horizontally or vertically to a broad range of wide-flange H and standard I beams
• Manufacturer's SKU : 202720
• UPC / ISBN : 662755898013
• Brand : Jet
• Additional : No
• Safety Info : No
• Shipping Weight : 13.2000
• Condition " New
• Product Weight (lbs.) : 13.00 Pounds
• Manufacturer's Warranty : 1 Year
• Return Policy : Unopened Only, 30 Days
• Height: 6.69 Inches
• Width: 3.74 Inches
• Length: 16.93 Inches
• Video : No

JET Tools - 252005 - Specifications

Brand Name	JET Tools
Capacity (Lbs.)	1100
Hook Mount Headroom (In.)	4-4/9
Load Capacity (Tons)	1/2
Maximum Beam Flange Width (In.)	8
Minimum Beam Curve Radius (In.)	39
Minimum Beam Flange Width (In.)	2-1/2
Minimum Beam Height (In.)	4
Model Number	1/2-PT
Prop 65	Cancer and Reproductive Harm
Weight (Lbs.)	19

JET Tools - 252005 - Documents and Downloads

JET Tools 252005 Specifications Sheet	Click to View
JET Tools 252005 Manual	Click to View
