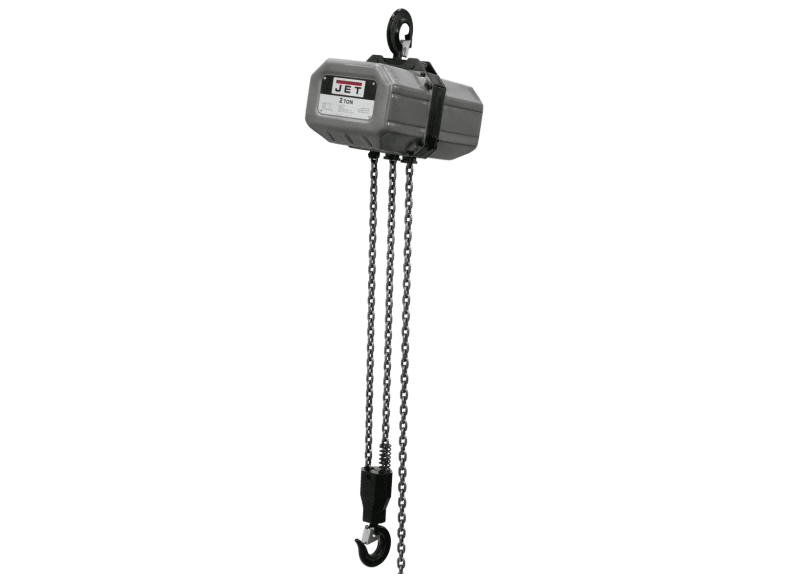

JET Tools 231000 | 2SS-3C-10, 2-Ton Electric Chain Hoist 3-Phase 10' Lift

JET SSC Series Electric Hoists combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET SSC Series Electric Hoist is available in ½ ton to 5 ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available). Not rated or designed for outdoor use or wet environments.

Before installation, read owner's manual for additional warnings and precautions. Not for use in an explosive environmentBe sure that the supporting structures and load-attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting ot transporting people, or lifting or supporting loads over people.

JET Tools - 231000 - Features

• All steel construction
• NEMA 4X compliant push button control pendants
• Durable powder coat finish
• Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
• Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
• Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity
• Push button controller with cable strain relief system for durability and reliability
• Reverse Phase Relay- A safety switch that protects the hoist from incorrect wiring of the power supply
• Designed for commercial and industrial applications
• 1/2 ton to 5 ton capacities, single or three phase models
• 10', 15' and 20' lifts standard, custom length lifts available
• Easy to install, inspect and maintain
• Totally enclosed steel plate construction with a durable powder coat finish
• Gear train features lifetime lubrication, no oil changes required
• Heavy duty ventilated motor with thermal overload protection
• 1 phase models feature thermal overload protection
• 3 phase models feature reverse phase protection
• Reliable DC electro-magnetic brake holds the load even if power is interrupted
• Quick connect wiring for power and push button controls
• Durable 24v pushbutton control station with cable strain relief
• Complies with OSHA, ANSI/ASME B30.16 and HST-1 standards
• All models rated HS with 25% duty cycle rating for 1 phase and 30% duty cycle rating for 3 phase models
• 15% duty cycle rating = 9 minutes continuous operation in 1 hour, or 1 minute on, 7 minutes off
• 25% duty cycle rating = 12 minutes continuous opeartion in 1 hour, or 1 minute on, 4 minutes off
• 30% duty cycle rating = 18 minutes continuous in 1 hour, or 1 minute on, 4 minutes off
• Includes:
• 2SS-3C-10, 2 Ton, 3Ph, 10' Lift, 230/460V, Pre-Wired 460V - 231000

JET Tools - 231000 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	231000
Item Description	2SS-3C-10, 2-Ton Electric Chain Hoist 3-Phase 10' Lift
Capacity (Lbs.)	4400
Duty Cycle (%)	30
Duty Cycle Rating	H4
Lift (Ft.)	10
Lifting Speed (FPM)	12
Load Capacity (Tons)	2
Max. Number of Starts (Per Hr.)	180
Max. On Time (Min. / Hr.)	18
Model Number	2SS-3C-10
Motor (HP)	2-1/7 HP, 460V, 3 Ph
Prop 65	Cancer and Reproductive Harm
Weight (Lbs.)	168
Headroom (In.)	28-1/8
Overall Width (In.)	11.81
Motor Current (Amps)	12
Capacity	2 Tons
Duty Cycle Rating	0.3
Headroom	28 1/8 -in
Hoisting Speed	12.4 FPM
Load Chain (dia./mm)	8
Number of Falls	2
Standard Lift	10-ft
