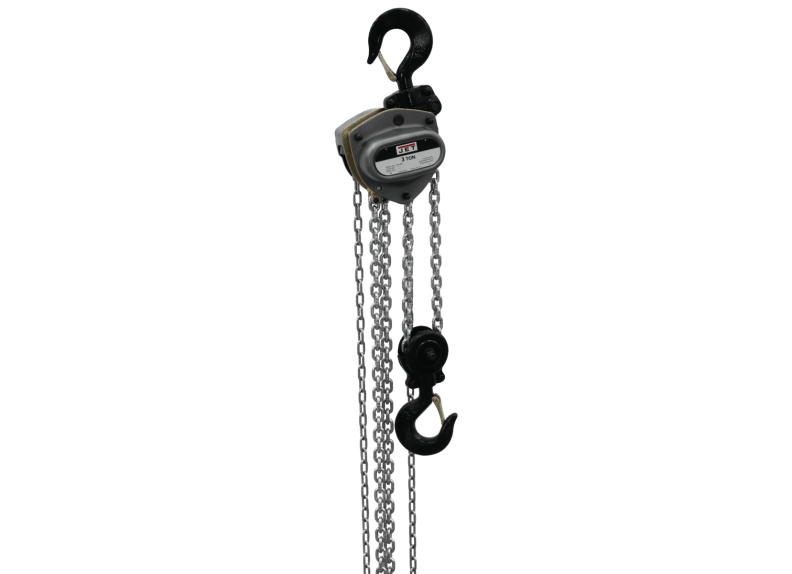

JET Tools 207130 | 3-Ton Hand Chain Hoist with 30' Lift & Overload Protection | L-100-300WO-30

JET L-100 Series Hand Chain Hoist is designed with all steel construction integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. Safety features such as the slip clutch style overload protection that prevents the hoist from lifting damaging loads beyond its rated capacity. The JET exclusive innovation showcased in the patented fused brake system reduces maintenance costs and limits downtime. JET is so confident in the durability of the fused brake design we back it with an industry leading lifetime replacement warranty. The JET L-100 is available in ¼ ton to 20 ton capacities and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). Regardless of how harsh the environment, the JET L-100 Series Hand Chain Hoist is engineered to perform.

JET L-100 series manual chain hoists combine a true rugged industrial design with highly refined quality culminating in the last manual hoist you may ever need to purchase. The attention to detail in the design of this series is second to none. The drop forged, carbon steel hooks are quenched and tempered to increase strength and will slowly stretch to indicate an overload situation. Cast steel safety latches, attached with Allen head screws and lock nuts, outclass the industry standard of stamped safety latches. The induction hardened, 100 grade load chain provides 20% more strength than the common 80 grade load chain found on inferior hoists. The double enclosed brake cover keeps dirt and debris away from the brake mechanism. While the sealed ball bearing supported load sheave provides efficient and smooth operation.The investment cast anchor plate, and all other internal parts are fully heat treated and quenched for added strength and reliability. All of the internal parts are zinc coated for additional corrosion protection. The triple spur gear drive train features alloy steel gears that have been heat treated, quenched and then case hardened for a lifetime of service. The patented fused brake disc design means little to no maintenance is required to keep these hoists operational. All L-100 series hoists are factory tested and certified.




https://www.autotoolworld.com/assets/icons/features.jpg

JET Tools - 207130 - Features

  • Double sealed ball bearings support the load sheave to increase efficiency and promote smooth operation
  • Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain
  • Heat Treated Load Plates
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
  • Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
  • Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
  • The lightweight design and smaller body are ideal for confined areas and low headroom applications
  • Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
  • All steel construction with a durable powder coat finish
  • Slip clutch design overload protection standard
  • Lightweight, compact design for low headroom application
  • Triple spur gears provide high efficiency with minimum effort
  • Heat treated and hardened premium 100 grade load chain
  • Smooth rolled edge on hand chain cover prevents side pull jamming
  • Drop forged alloy steel safety hooks feature wide throats for ease of rigging
  • Patented fused disc brake offers longer life and ease of replacement
  • Sealed ball bearing supported load sheave
  • Drive pinion supported on both ends with sealed ball bearings
  • Heavy duty cast safety latches
  • Complies with OSHA, ANSI/ASME B30.16 and HST-2 standards
  • Includes:
  • L100-300WO-30, 3 Ton Capacity Hoist with 30-ft Lift and Overload Protection - 207130



https://www.autotoolworld.com/assets/icons/specs.jpg

JET Tools - 207130 - Specifications

Brand NameJET Tools
Manufacturer Part Number207130
Item Description3-Ton Hand Chain Hoist with 30' Lift & Overload Protection | L-100-300WO-30
Hand Chain To Lift Load 1 ft.114
Capacity (Lbs.)6600
Lift (Ft.)30
Load Capacity (Tons)3
Load Chain Dimensions dia/mm)7.1 x 21
Model NumberL-100-300WO-30
Prop 65Cancer and Reproductive Harm
Weight (Lbs.)95
Lbs. of Pull to Lift Capacity79.0000
Headroom (In.)20-1/8



https://www.autotoolworld.com/assets/icons/pdf.jpg

JET Tools - 207130 - Documents and Downloads

JET Tools 207130 Specifications SheetClick to View
JET Tools 207130 ManualClick to View
