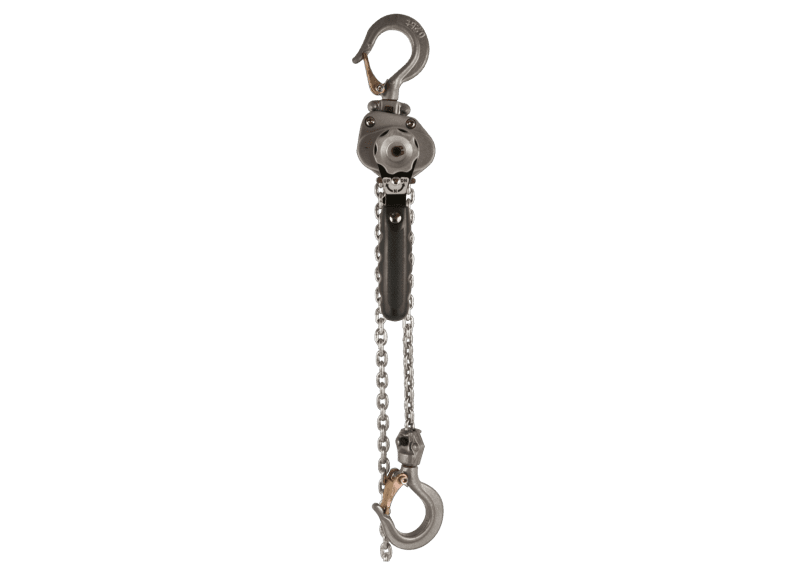

JET Tools 181515 | JLH-50-15, 1/2-Ton Compact Lever Hoist With 15' Lift

The JET JLH Compact Lever Hoist integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. The lightweight design is achieved with a durable aluminum alloy housing that reduces weight for ease of transport. The dual pawl Weston style brake system splits the load to opposite sides of the ratchet gear for greater load security. Mechanical advantage is gained by the JET exclusive addition of the five gear drive train requiring less force to lift or secure a load. Included is a nylon carrying case for convenient transportation, reducing trips to the tool room and prevents any unnecessary damage to the hoist. The JET JLH Compact Lever Hoist is available in ¼ ton and ½ ton capacities with standard lifts of 5, 10 and 15 feet (custom lifts available). Whether it’s inverted, vertical, horizontal, or any other load angle, the JET JLH Compact Lever Hoist is the solution for your heavy-duty industrial needs. Complies with OSHA Regulations, ANSI / ASME B30.21, and HST-3 standards.

The JET JLH Compact Lever Hoist integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. The lightweight design is achieved with a durable aluminum alloy housing that reduces weight for ease of transport. The dual pawl Weston style brake system splits the load to opposite sides of the ratchet gear for greater load security. Mechanical advantage is gained by the JET exclusive addition of the five gear drive train requiring less force to lift or secure a load. Included is a nylon carrying case for convenient transportation, reducing trips to the tool room and prevents any unnecessary damage to the hoist. The JET JLH Compact Lever Hoist is available in 1/4 ton and 1/2 ton capacities with standard lifts of 5, 10 and 15-ft (custom lifts available). Whether it's inverted, vertical, horizontal, or any other load angle, the JET JLH Compact Lever Hoist is the solution for your heavy-duty industrial needs.

JET Tools - 181515 - Features

• Alloy Steel Hooks- Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• Cast steel safety latches
• Compact design with smaller body and lightweight design for low headroom applications and use in confined areas
• Grade 100 Load Chain- Corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
• Heat Treated Load Plates
• Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• Weston style dual pawl brake system's double pawl design increases safety by splitting the load to opposite sides of the ratchet gear for greater load security
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• Nylon carrying case is included for convenient transportation, reducing trips to the tool room and prevents any unnecessary damage to the hoist
• With the work to weight ratio at 5.6 lbs., the 1/2 ton JLH Compact Lever Hoist can pull or hold a load more than 170 times its weight
• A 1/2 ton of compact pulling power that fits in the palm of your hand
• JET's exclusive five gear drive train requires less force to lift or secure a load
• Durable, impact resistant, Aluminum alloy housings makes the JLH Compact lever hoist one of the lightest hoists on the market
• Corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
• Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
• Compact design offers smaller body and lighter weight for low headroom applications and use in confined areas
• Complies with OSHA Regulations, ANSI / ASME B30.21 and HST-3 Standards
• Factory tested to 125% of capacity with load test certificate
• Includes:
• JLH-50-15, 1/2-Ton Compact Lever Hoist with 15-ft Lift - 181515

JET Tools - 181515 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	181515
Item Description	JLH-50-15, 1/2-Ton Compact Lever Hoist With 15' Lift
Headroom (in.)	9-7/10
Capacity (Lbs.)	1000
Lift (Ft.)	15
Load Capacity (Tons)	1/2
Load Chain Dimensions dia/mm)	4.3 x 12
Model Number	JLH-50-15
Prop 65	Cancer and Reproductive Harm
Weight (Lbs.)	8.6
Lever Length (in.)	6-3/10
Lbs. of Pull to Lift Capacity	54.0000
Ship Yard Hooks	NO
Weight	8.6 lbs.
Capacity	0.5 Tons
Handle Length (In.)	6-3/10-in
Headroom	9-7/10-in
Important	Before installation, read owner's manual for additional warnings and precautions. Not for use in an explosive environment
Lever Pull Force (LBF)	54
Load Chain (dia./mm)	4.3 x 12mm
Number of Falls	1
Standard Lift	15-ft
