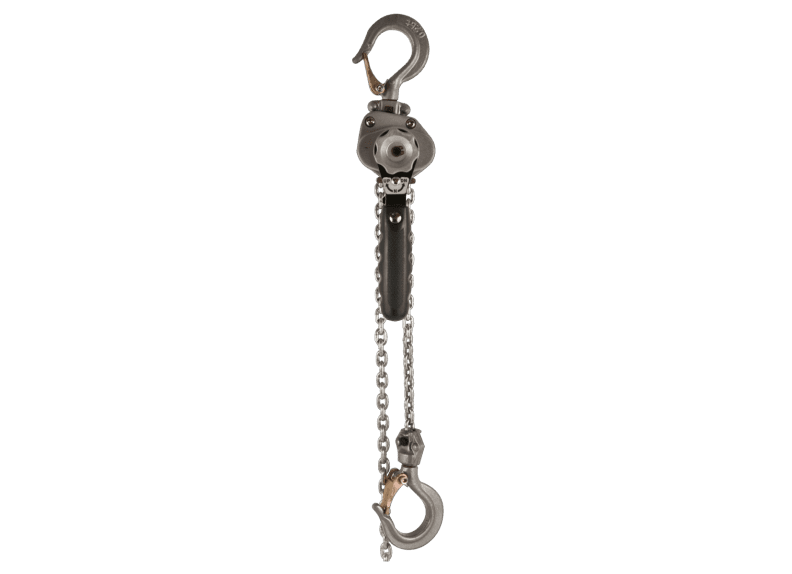

JET Tools 181505 | JLH-50-5, 1/2-Ton Compact Lever Hoist With 5' Lift

The JET JLH Compact Lever Hoist integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. The lightweight design is achieved with a durable aluminum alloy housing that reduces weight for ease of transport. The dual pawl Weston style brake system splits the load to opposite sides of the ratchet gear for greater load security. Mechanical advantage is gained by the JET exclusive addition of the five gear drive train requiring less force to lift or secure a load. Included is a nylon carrying case for convenient transportation, reducing trips to the tool room and prevents any unnecessary damage to the hoist. The JET JLH Compact Lever Hoist is available in ¼ ton and ½ ton capacities with standard lifts of 5, 10 and 15 feet (custom lifts available). Whether it’s inverted, vertical, horizontal, or any other load angle, the JET JLH Compact Lever Hoist is the solution for your heavy-duty industrial needs. Complies with OSHA Regulations, ANSI / ASME B30.21, and HST-3 standards.

Brand Name - 181505 - Features

• Alloy Steel Hooks- Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• Cast steel safety latches
• Compact design with smaller body and lightweight design for low headroom applications and use in confined areas
• Grade 100 Load Chain- Corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
• Heat Treated Load Plates
• Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• For use with JPS-10XL50CW 10-in ProShop Table Saw
• Includes:
• 30-in Rip ProShop Rail Set - 708483
• Length: 62.8 in.
• Width: 2.75 in.
• Height: 3.4 in.

JET Tools - 181505 - Specifications

Brand Name	JET Tools
Headroom (in.)	9-7/10
Capacity (Lbs.)	1000
Lift (Ft.)	5
Load Capacity (Tons)	1/2
Load Chain Dimensions dia/mm)	4.3 x 12
Model Number	JLH-50-5
Prop 65	Cancer and Reproductive Harm
Weight (Lbs.)	5.5
Lever Length (in.)	6-3/10
Lbs. of Pull to Lift Capacity	54.0000

JET Tools - 181505 - Documents and Downloads

JET Tools 181505 Specifications Sheet	Click to View
JET Tools 181505 Manual	Click to View
