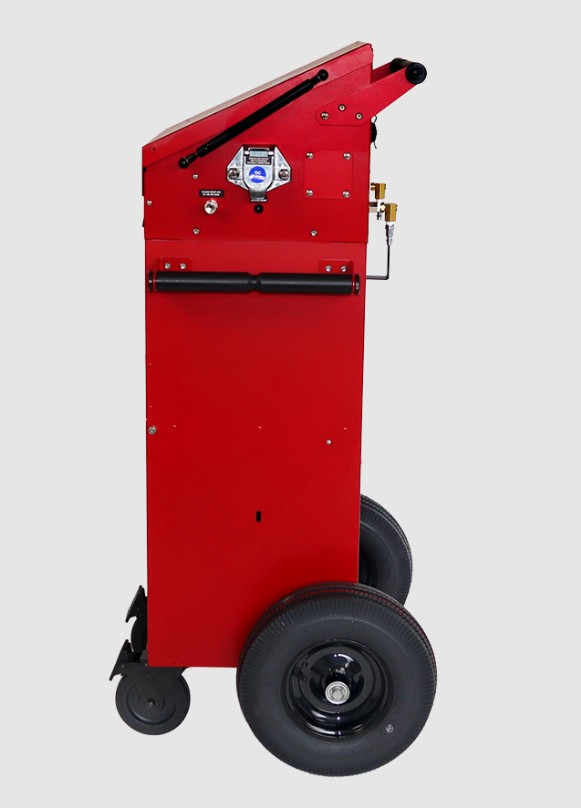

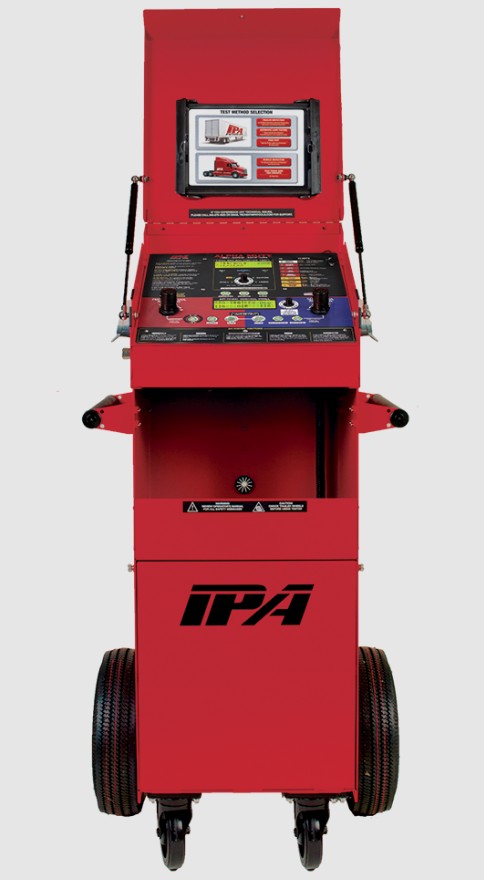

Innovative Products Of America M5710A-T10 | Military Alpha MUTT (2nd Gen) with ABS and Tablet Mobile Universal Trailer Tester

One-Man Trailer Inspection System that Tests a Trailer Without a Truck!

The Military Alpha MUTT (2nd Generation) with ABS and tablet is an all-in-one, mobile, advanced diagnostic tester and inspection system for both vehicles and trailers. IPA uses its own proprietary technology to achieve unparalleled accuracy while conducting electrical, air brake and ABS testing.

Made proudly in the USA, each Alpha MUTT features a rugged design that answers the call of fleets looking to enhance the speed and accuracy of trailer pm inspections.

Several models are available with our wireless productivity suite, which includes cloud uploading and the option to instantly link all trailer inspections fleet wide for inspection-failure-cause analytics.

Innovative Products Of America - M5710A-T10 - Features

• ABS TESTING:
• Reads and clears codes on front panel or tablet
• Accesses ECU data; manufacturer, make, model, etc.
• Displays diagnostic troubleshooting information
• Automatically detects corroded ABS wires and faulty ECU's with patent-pending technology
• ELECTRICAL TESTING(12/24 Volt Operation):
• Automatic cross, open, overload, short and ground fault detection
• Highly accurate digital ammeter with 1mA resolution
• Chase down short circuits with Pulsar® mode
• Ground failure detection: differentiates between wire and chassis ground
• Cable testing
• Control lights by remote
• AIR BRAKE TESTING:
• Dual regulators
• Remote-controlled air brake activation
• Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
• Perform analog leak-down tests in service and emergency lines
• TRUCK-SIDE TESTING:
• Tests continuity to trailer connectors of tractor
• Tests air brake output at tractor gladhands
• IPA's Diagnostic Software Suite:
• IPA's diagnostic software suite provides faster and more comprehensive paperless inspections, resulting in less mistakes and citations down the road. The Inspection Customization Tab helps reduce costs and technician/fleet manager frustrations by avoiding time-consuming, failure-prone data entry points.
• Capture Inspection Reports:
• Inspection accountability
• Customizable, password-protected user login
• Technician's username is recorded with each test
• Trailer VIN entry with each inspection maintains more accurate record keeping
• PREVENTS RECURRING MISTAKES AND PROVIDES WALK-THROUGH EXPERT GUIDANCE:
• Built-in Diagnostic Message Center analyzes inspection results in real-time, providing users with immediate feedback and troubleshooting suggestions
• Detailed pass/fail circuit conditions (ground, open, crossed and short) will alert with specific values
• Provides real-time data and control
• Records multiple data points for each circuit including wattage, voltage and current
• Reads accurate current from 0-21 amps @ 1mA resolution
• RECORD AND ANALYZE INSPECTIONS RESULTS:
• Logs detailed pass/fail inspection reports
• Easily accessible report history allows technicians to analyze patterns for predictable failure points across all fleet service operations
• Upgradeable cloud-based option syncs an unlimited number of service locations with a central hub
• Email, print or export reports to PDF or XLS formats

Innovative Products Of America - M5710A-T10 - Includes

• 10" Tablet (#5700-TAB)
• (1) 12-Button Remote (#MUT-RM12)
• Bluetooth Antenna (#5700-BT-AS3)
• 12' 7-Way Cable (#7900K-12AS)
• 12' Red Gladhand Hose with Handle (7900AP-12RED-FX)
• 12' Blue Gladhand Hose with Handle (7900AP-12BLU-FX)
• 12" Bluetooth Extension Cable (CBL-OBD2MF-12)
• Power Cord for Internal Charger (#7900K-80ACORD)
• Rain Cover (#CVR-0002)

Innovative Products Of America - M5710A-T10 - Specifications

Brand Name	Innovative Products Of America
Manufacturer Part number	M5710A-T10
UPC	893509003494
Connection Type	7-Way Round Pin, 12-Pin NATO
Power Input	12/24V DC
Battery Compartment	14" W x 15.5" H x 13" D
Suggested Battery	2X Group 31 Threaded Post (or similar) Not Included
Internal Battery Charger	12V 10A Smart Battery Charger
Ammeter	0 - 21 amps, 1mA Resolution
Source Output	20A @ 12/24V DC
Max Operating Pressure	120 psi
Air Input	¼" npt (120 psi max.)
Controls	Tablet, Remote or Manual
Tablet Size	10"
Tablet	Android Operating System
Tablet/Remote Range	100'
Bluetooth	4.0 or Newer
Tires	12.5" Pneumatic
Casters	6" Locking
Shelf Space	14" W x 11" H x 13" D
Lid	Face Cover with Dampeners
Material	16 Gauge Powder-Coated Steel
Weight	85 lbs.
Dimensions	22" L x 23" W x 45" H
Warranty	3-Year Limited Warranty
CoO	USA
