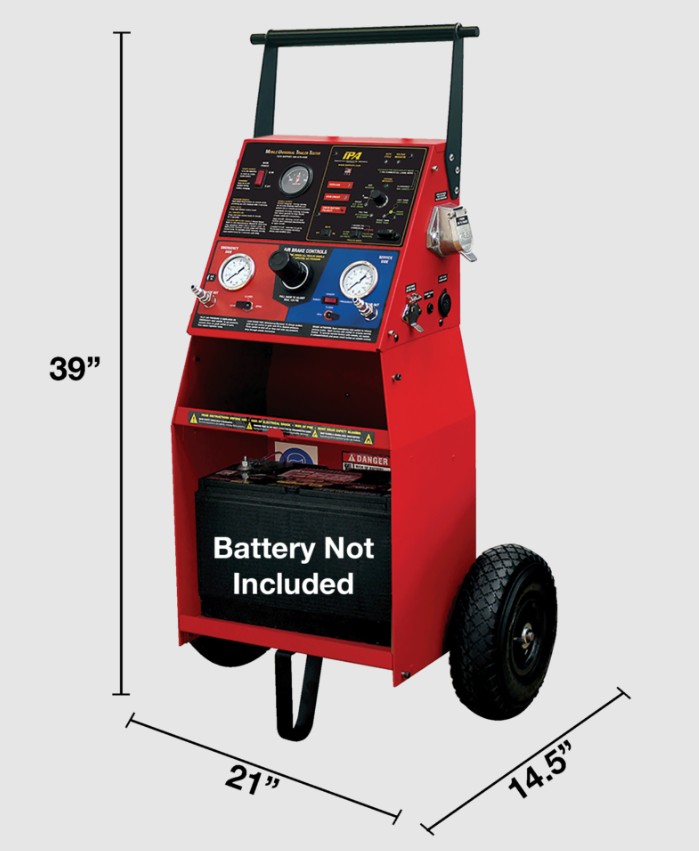

Innovative Products Of America M2000 | NATO MUTT Mobile Universal Trailer Tester

State-of-the-Art, 12/24V, ABS, Remote-Controlled Diagnostic Trailer Tester

The industry-leading trailer tester that quickly repairs and troubleshoots military and commercial trailer light and air brake systems. The durable NATO MUTT is designed for on or off-site inspections.

Innovative Products Of America - M2000 - Features

• ELECTRICAL TESTING(12/24 Volt Operation):
• Designed for both 7-way round pin SAE J560 and 12-pin STANAG 4007 NATO plugs
• Power lights: manually, all-on, auto scan, or by remote control
• Audible and visual alerts: cross, open, overloaded and short circuit indication
• PulsarMode allows for chasing down short circuits without blowing fuses
• Advanced trailer wiring diagnostics
• Amperage readout and range (0-20 amps)
• Ground failure detection: differentiates between wire and chassis ground
• ABS TESTING:
• Access ABS blink codes
• Test ABS fault blink codes via Auxiliary and Brake Circuit activation (i.e. Meritor/Wabco, Bendix® TABS-6 and Haldex systems)
• AIR BRAKE TESTING:
• Performs leak down test on service and emergency lines
• Remote control allows observation of slackers to measure and adjust pushrods
• Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
• Features an internal air regulator
• REMOTE CONTROL:
• 12-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
• Sync multiple (12) remotes to one unit

Innovative Products Of America - M2000 - Includes

• (2x) 12-Button Remote Controls (#MUT-RM12)
• 5' 7-Way Cable (#7900K-1)
• 8' Red Hose with Gladhands (#7900AP-8RD-AS)
• 8' Blue Hose with Gladhands (7900AP-8BL-AS)
• 10-Amp Smart Battery Charger (#KCHG-121001)
• Face/Battery Shield (#9008-4R)

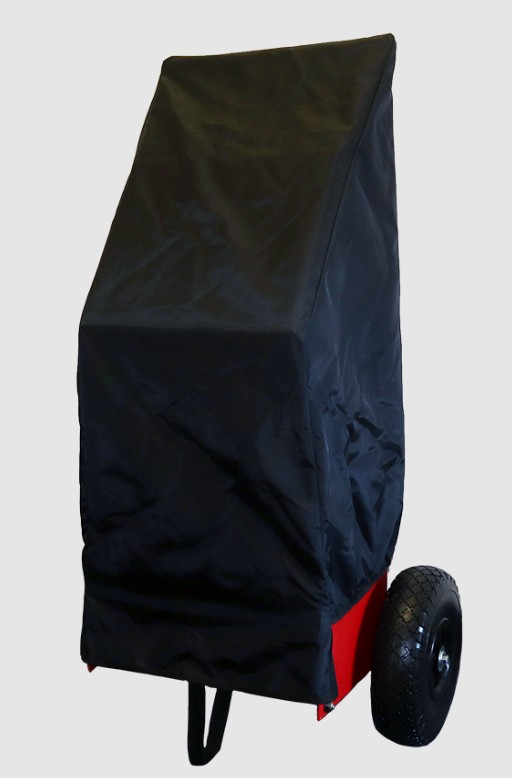

• Rain Cover (#CVR-0001)

Innovative Products Of America - M2000 - Specifications

Brand Name	Innovative Products Of America
Manufacturer Part number	M2000
UPC	893509001681
Connection Type	7-Way Round Pin and 12-Pin NATO
Power Input	12V DC
Suggested Battery	Group 31 (or similar battery) or external 12 volt power source
Source Output	20A @ 12V DC
Max Operating Pressure	120 psi
Air Input	¼" npt (120 psi max.)
Controls	Manual, Remote, Automatic
Tires	10" Foam Filled
Material	Powder-Coated Steel
Weight	56 lbs.
Dimensions	21" L x 15" W x 35" H
Warranty	3-Year Limited Warranty
CoO	USA

Innovative Products Of America - M2000 - Documents and Downloads

Innovative Products Of America M2000 Sell Sheet	Click to View
Innovative Products Of America M2000 Manual	Click to View
Innovative Products Of America M2000 Trailer Tester Guide	Click to View
Innovative Products Of America M2000 Comparison Chart	Click to View
