Innovative Products Of America 9200 | Tactical Trailer Tester Field Kit

Designed to Test, Clean and Restore Tow Circuits on All Trucks and Trailers in North America.

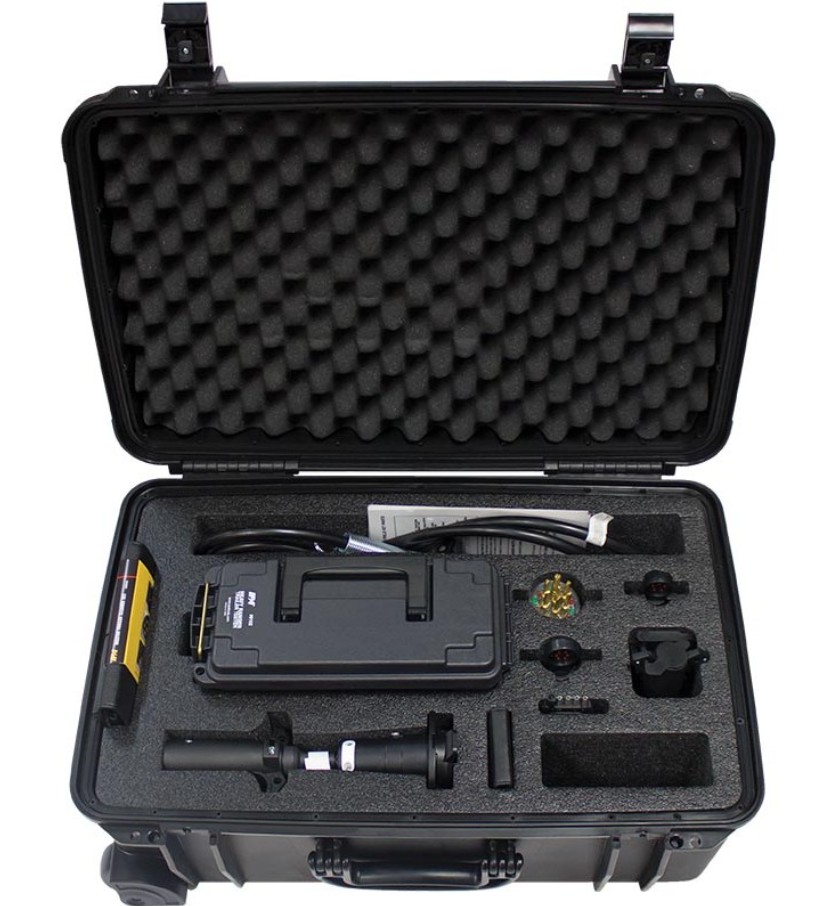

The 37-piece #9200 Tactical Trailer Tester Field Kit is engineered with the service professional in mind and encompasses all the tools and adapters necessary for maintenance on 4/5, 6-Way Round, 7-Way Flat and 7-Way Round pin electrical connectors. The #9200 comes in a custom, hard case built to withstand harsh conditions in the field, in the shop, or on the road.

Innovative Products Of America - 9200 - Features

• Test all truck-side tow circuits
• Test all trailer circuits
• Clean all truck and trailer electrical connections
• Custom case features waterproof, crush-proof, custom foam insert, pressure equalization (purge) valve, and a lifetime warranty

Innovative Products Of America - 9200 - Includes

• Heavy Ranger MUTT (#9102)
• Diamond-Tip Electrical Terminal Cleaners (#8040)
• 3-Way Trailer Adapter (#8000)
• 4/5 Pin Trailer Harness Checker (#7866)
• 6-Way Round Pin Tractor Trailer Circuit Tester (#7897)
• 7-Way Round Pin Tractor Trailer Circuit Chaser (#7865L)
• 7-Way Flat (Spade) Pin Trailer Circuit Tester (#7893)

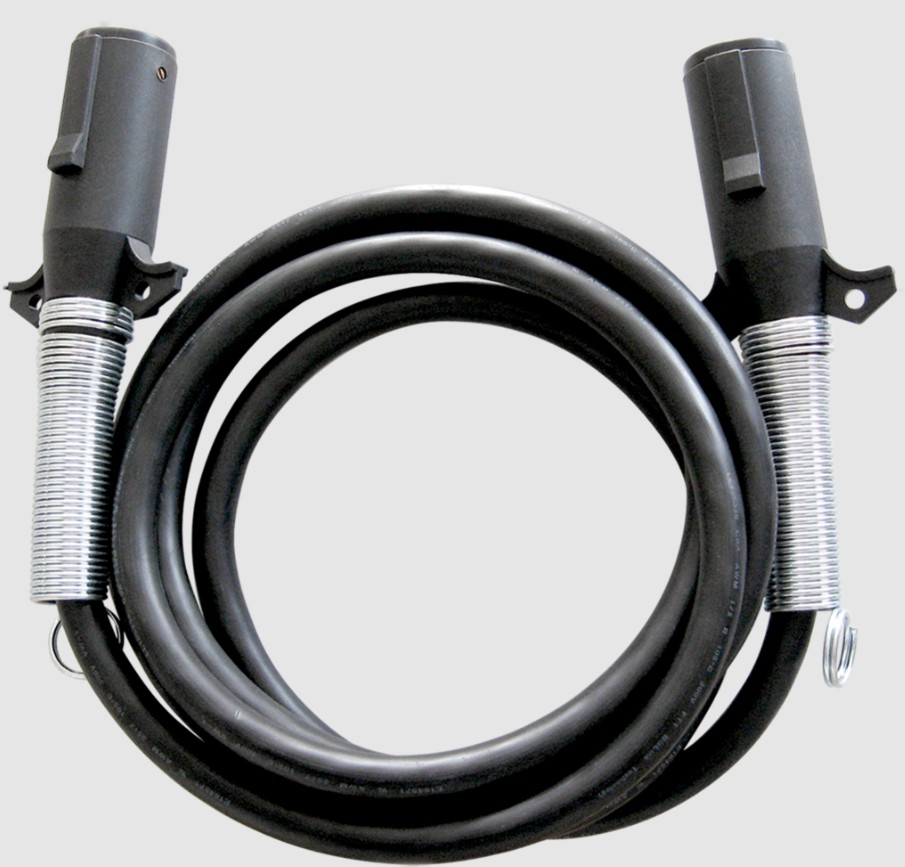

• 8' 7-Way Round Cable (#7900K-1-8AS)
• 500mA Battery Charger (#CHR0001)
• 7-Way Round to 7-Way Flat (Spade) Adapter (#7900A-5A)
• Truck and Trailer Pin Master Cleaner Set (#8044)
• Custom Case (#ENC-0003)

Innovative Products Of America - 9200 - Specifications

Brand Name	Innovative Products Of America
Manufacturer Part number	9200
UPC	893509003081
Materials	ABS Plastic, PVC Coated Wires, Anodized Aluminum, Steel, Diamond Abrasive
Weight	35 lbs.
Dimensions	L: 26" W: 24" H: 10"
Warranty	1-Year Limited

Innovative Products Of America - 9200 - Documents and Downloads

Innovative Products Of America 9200 Sell Sheet	Click to View
Innovative Products Of America 9200 Manual	Click to View
Innovative Products Of America 9200 Operator's Manual	Click to View
