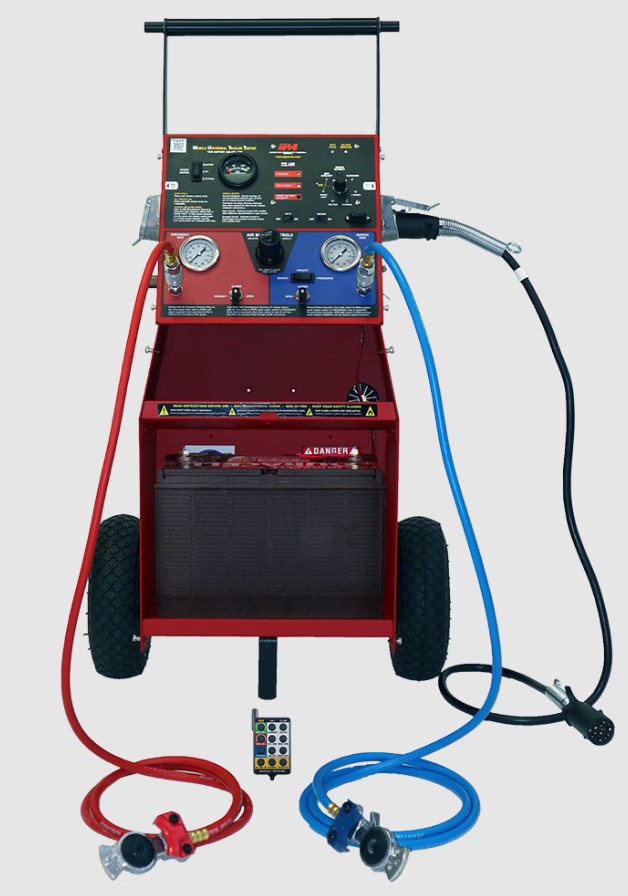

Innovative Products Of America 9008-SE | Super MUTT Base Model Mobile Universal Trailer Tester

Quickly troubleshoot lighting and air brake systems with the Super MUTT PRO Edition—a compact, rugged solution for 7-way electrical and air brake diagnostics. Engineered for heavy-duty fleets, this versatile unit combines 12/24V operation with real-time circuit analysis and dynamic brake actuation. Operates all functions remotely up to 200 feet away, making it ideal for use in yards, shops, or on the roadside. Easily detects shorts, ground faults, and wiring issues while minimizing guesswork and speeding up inspections. When testing ABS systems, the supermarket can be used to trigger blink codes. For more advanced ABS diagnostics, see the Alpha MUTT series.

Innovative Products Of America - 9008-SE - Features

• ELECTRICAL TESTING (12/24 Volt Operation):
• Advanced trailer wiring diagnostics
• Power lights: Manually, all-on, auto scan, or by remote control
• Automatic fault alerts: Cross, open, overload, and short circuit indication
• Pulsar mode allows for chasing down short circuits without blowing fuses
• Ground failure detection: Differentiates between wire and chassis ground
• Cable testing validates continuity for any 7-way round cable
• Ammeter displays: 0-20 amps
• AIR BRAKE TESTING:
• Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
• Remote control allows observation of slackers to measure and adjust pushrods
• Performs leak-down tests on service and emergency lines
• REMOTE CONTROL:
• 12-button remote with 200+ ft range
• Selects individual, multiple, or all circuits at once
• Actuates service side air brakes
• Syncs multiple (12) remotes to one unit

Innovative Products Of America - 9008-SE - Includes

• 12-Button Remote Control (#MUT-RM12)
• 5' 7-Way Cable (#7900K-1)
• 8' Red Hose with Gladhands (#7900AP-8RD-AS)
• 8' Blue Hose with Gladhands (7900AP-8BL-AS)

Innovative Products Of America - 9008-SE - Specifications

Brand Name	Innovative Products Of America
Manufacturer Part number	9008-SE
UPC	893509001216
Connection Type	7-Way Round Pin
Power Input	12V DC
Suggested Battery	Group 31 (or similar battery) or external 12 volt power source
Source Output	20A @ 12V DC
Max Operating Pressure	120 psi
Air Input	¼" npt (120 psi max.)
Controls	Manual, Remote, Automatic
Tires	10" Pneumatic
Material	Powder-Coated Steel
Weight	56 lbs.

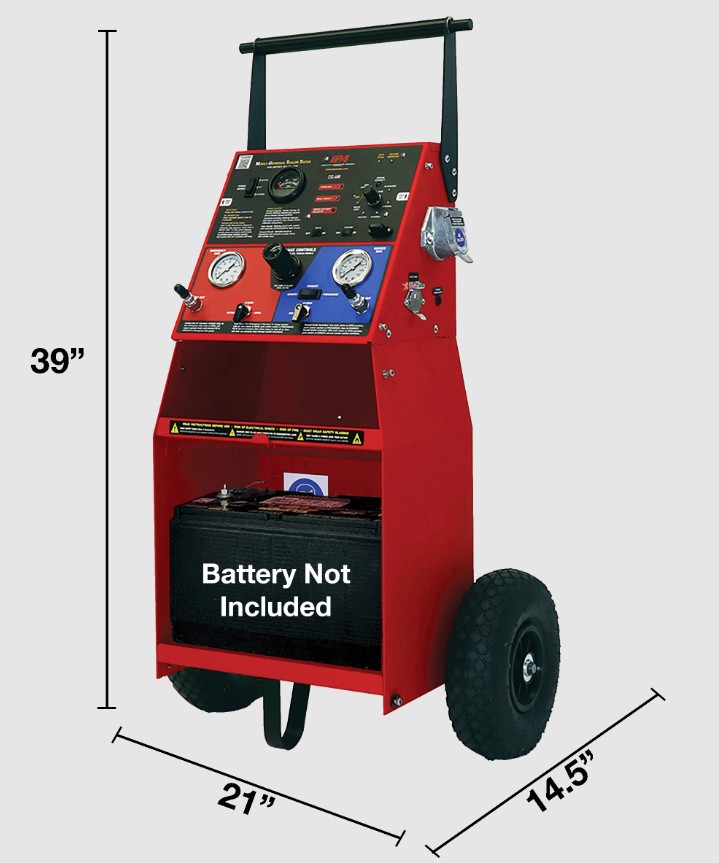

Dimensions	21" L x 15" W x 35" H
Warranty	3-Year Limited Warranty
CoO	USA

Innovative Products Of America - 9008-SE - Documents and Downloads

Innovative Products Of America 9008-SE Sell Sheet	Click to View
Innovative Products Of America 9008-SE Manual	Click to View
Innovative Products Of America 9008-SE Trailer Tester Guide	Click to View
Innovative Products Of America 9008-SE Comparison Chart	Click to View
