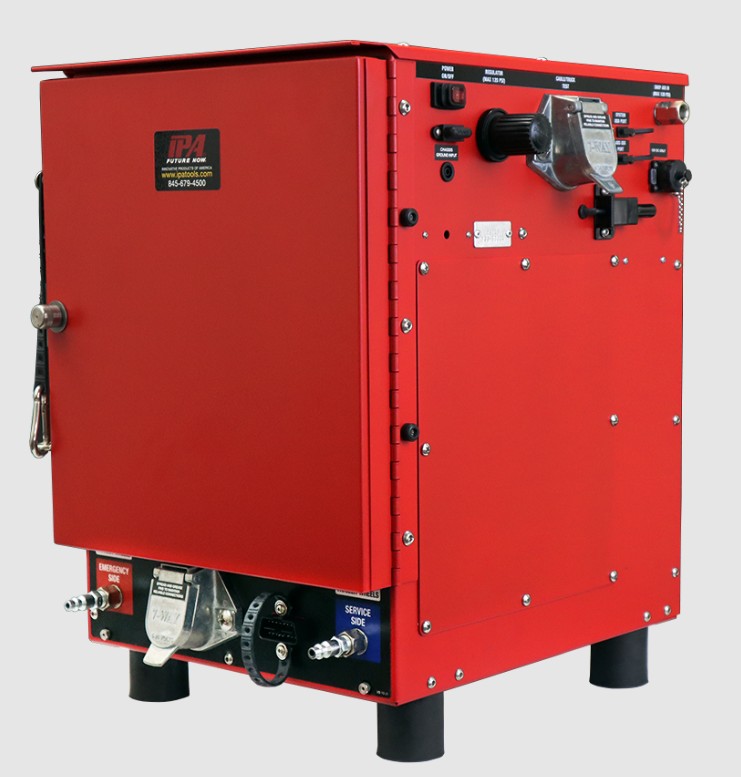

Innovative Products Of America 5610A-RT8 | Alpha MUTT (2nd Gen) with ABS and Rugged Tablet (No Slide-Out Base) Mobile Universal Trailer Tester

Purposely Built for Service Truck Boxes, Underbody and Side-Mount Tool Boxes

The #5610A-RT8 Alpha MUTT Service Truck Model with ABS is an all-in-one, advanced diagnostic tester and inspection system for both vehicles and trailers. It saves time and money by providing mistake-free, paperless inspections that are faster and more efficient than existing methods across all your locations. It’s build features anti-vibration feet with bolt-through design for bottom mounting to service-truck boxes. The soft-close drawer holds the integrated tablet docking/charging station and custom foam cutout storage for remote control and Bluetooth antenna and all ports are accessible with steel door closed. All stainless steel hardware and drill template included with tester for easy installation. Space-saving design: 16.5" W x 21.5" H x 19" D

IPA uses its own proprietary technology and a custom software suite to achieve unparalleled accuracy and record keeping while conducting electrical, air brake and ABS testing along with full DOT inspections. Several models are available with expandable capabilities including ABS testing, air pressure sensors, cloud uploading and the option to instantly link all trailer inspections fleet wide for inspection-failure-cause analytics. The added convenience of a tablet provides inspection reports which eliminate the burden of time-consuming paperwork. Made proudly in the USA, each Alpha MUTT features a rugged design that answers the call of fleets looking to enhance the speed and accuracy of trailer pm inspections.

Innovative Products Of America - 5610A-RT8 - Features

• ELECTRICAL TESTING (12/24 Volt Operation):
• Automatic cross, open, overload and short fault detection
• Highly accurate digital ammeter with 1mA resolution
• PulsarMode allows for chasing down short circuits without blowing fuses
• Cable testing
• Ground failure detection: differentiates between wire and chassis ground
• Control lights by remote or tablet
• Detailed inspection report generated from auto-test function in under 60 seconds
• ABS TESTING:
• Real-time ABS software-features with integrated ECU sensor diagrams
• Reads and Clears Codes on Front Panel or via Tablet
• Displays diagnostic troubleshooting information
• Access ECU data: manufacturer, make, model, etc.
• AIR BRAKE TESTING:
• Tablet or remote-controlled air brake activation
• Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
• Perform analog leak-down tests in service and emergency lines
• IPA's Diagnostic Software Suite:
• IPA's diagnostic software suite provides faster and more comprehensive paperless inspections, resulting in less mistakes and citations down the road. The Inspection Customization Tab helps reduce costs and technician/fleet manager frustrations by avoiding time-consuming, failure-prone data entry points.
• DOT INSPECTIONS:
• Trailer VIN and all required information can be entered and saved to avoid redundant data entry
• Customize templates with Inspection Creation Tab
• Inspection accountability
• Technician's username is recorded with each test
• PREVENTS RECURRING MISTAKES AND PROVIDES WALK-THROUGH EXPERT GUIDANCE:
• Built-in Diagnostic Message Center analyzes inspection results in real-time, providing users with immediate feedback and troubleshooting suggestions
• Detailed pass/fail circuit conditions (ground, open, crossed and short) will alert with specific values
• Provides real-time data and control
• Records multiple data points for each circuit including wattage, voltage and current
• Reads accurate current from 0-21 amps @ 1mA resolution
• RECORD AND ANALYZE INSPECTIONS RESULTS:
• Logs detailed pass/fail inspection reports
• Report history allows fleet managers to analyze patterns for predictable failure points across all fleet and service locations
• Cloud-based option syncs an unlimited number of service locations with a central hub
• Email, print or export reports to PDF or XLS formats
• Software can be utilized on any Android tablet (custom solutions available for other operating systems)
• Optimized for Extreme Weather Conditions:
• Waterproof and sealed face label with illuminated stainless steel pushbutton switches
• Two dual-line, 32-character LCD screens optimized for outdoor use with backlighting for nighttime, sunlight readable for daytime, and wide-angle view Internal circuit board coated to protect from moisture and corrosion
• MIL-STD-810 certified, military-grade weatherproof rugged tablet
• Weather-tight steel door to keep electronics and control panel safe in all conditions

Innovative Products Of America - 5610A-RT8 - Includes

• Rugged Tablet (#5700-TAB)
• 2nd Gen 12-Button Remote (#MUT2-RM12)
• 20' 7-Way Cable (#7900K-1-20AS)
• 20' Red Gladhand Hose with Handle (5600-20RED-AS)
• 20' Blue Gladhand Hose with Handle (5600-20BLUE-AS)
• 5' Bluetooth Extension Cable (CBL-OBD2EXT)
• Power Cable (#5600-PWRCBL-AS)

Innovative Products Of America - 5610A-RT8 - Specifications

Brand Name	Innovative Products Of America
Manufacturer Part number	5610A-RT8
UPC	893509003661
Connection Type	7-Way Round Pin
Power Input	12/24V DC
Ammeter	0 - 21 amps, 1mA Resolution
Source Output	20A @ 12/24V DC
Max. Operating Pressure	120 psi
Air Input	1/4" npt (120 psi max.)
Controls	Tablet, Remote or Manual
Tablet	Android Operating System
Bluetooth	4.0 or Newer
Tablet/Remote Range	100'
Tablet Dimensions	10" x 7"
Tablet Resolution	1080
Lid	Face Cover with Dampeners
Materials	16-Gauge Powder-Coated Steel Construction
Weight	54 lbs.
Full Body Dimensions	16.5" W x 21.5" H x19" D (33" extended)
Warranty	3-Year Limited Warranty
CoO	USA
