Innovative Products Of America 4205 | Smart MUTT X Pro Edition (7-Way Round/Flat, 6-Way Pin) Mobile Universal Trailer Tester

(Supersedes the #9004M and #9007M Smart MUTT

A Universal, Remote-Controlled, Diagnostic Light Tester for All North American Trailers

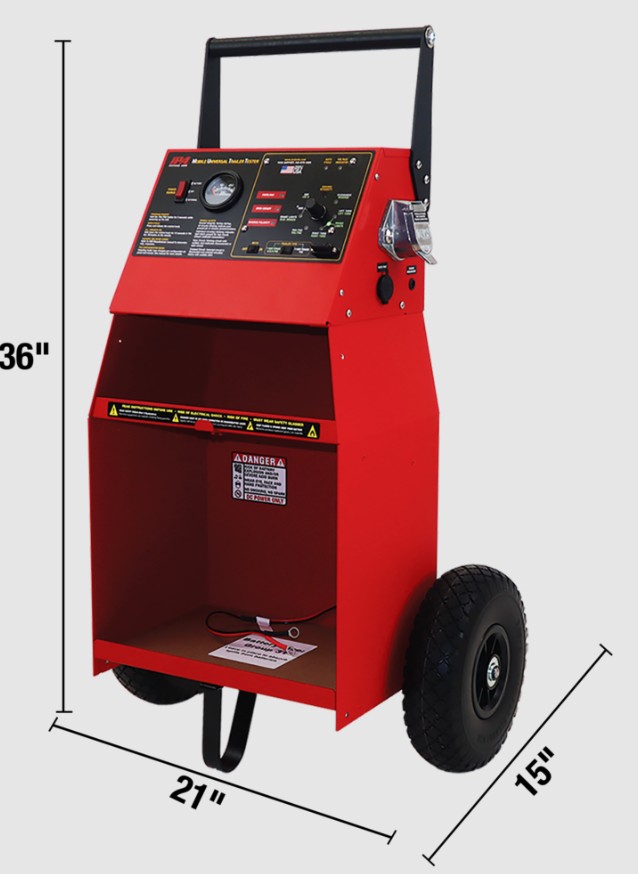

Built to facilitate a one-man testing operation, the Smart MUTT X Pro Edition reduces guesswork and inspection time to prevent failures that lead to expensive road calls and citations. Designed to be used on five trailer-connection types (7-way flat (spade), 7-way round, 6-way round, 5-pin and 4-pin connections), the SMART MUTT X Pro Edition features a rugged cart body for testing lights and electric brakes on commercial and light-duty trailers.

Innovative Products Of America - 4205 - Features

• ELECTRICAL TESTING(12/24V Operation):
• Remote-controlled operation of lights and electric brakes
• One-man testing saves time and money
• Automatic ground, cross, open, overload and short circuit
  fault indicators
• PulsarMode allows for chasing down short circuits without blowing fuses
• Ammeter 0–20 amps
• Rugged cart body for mobility in and outside the shop

Innovative Products Of America - 4205 - Includes

• (2) 12-Button Remote Control (#MUT-RM12-4A)
• 5' 7-Way Cable
• 10 Amp Smart Charger (12v DC) (#KCHG-121001)
• 3-Way Trailer Adapter (#8000)
• Rain Cover

Innovative Products Of America - 4205 - Specifications

Brand Name	Innovative Products Of America
Manufacturer Part number	4205
UPC	893509003739
Connection Type	7-Way Round & 7-Way Flat Pin, 6-Way Round, 5 Pin and 4 Pin (with Adapter)
Power Input	12V DC
Battery Requirements (Battery Not Included)	Group 31 or Similar (Not Included)
Source Output	20A @ 12V DC
Controls	Manual, Remote, Automatic
Material	Powder-Coated Steel
Weight	11.5 lbs.
Dimensions	21" L x 15" W x 36" H
Warranty	3-Year Limited Warranty
CoO	USA

Innovative Products Of America - 4205 - Documents and Downloads

Innovative Products Of America 4205 Sell Sheet	Click to View
Innovative Products Of America 4205 Manual	Click to View
Innovative Products Of America 4205 Comparison Chart	Click to View
Innovative Products Of America 4205 Trailer Tester Catalog	Click to View
