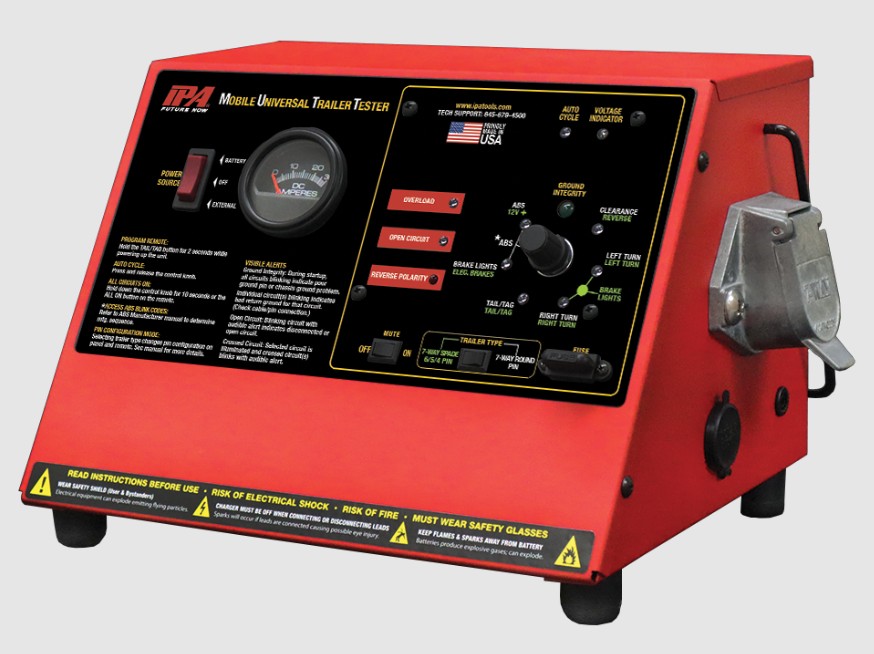

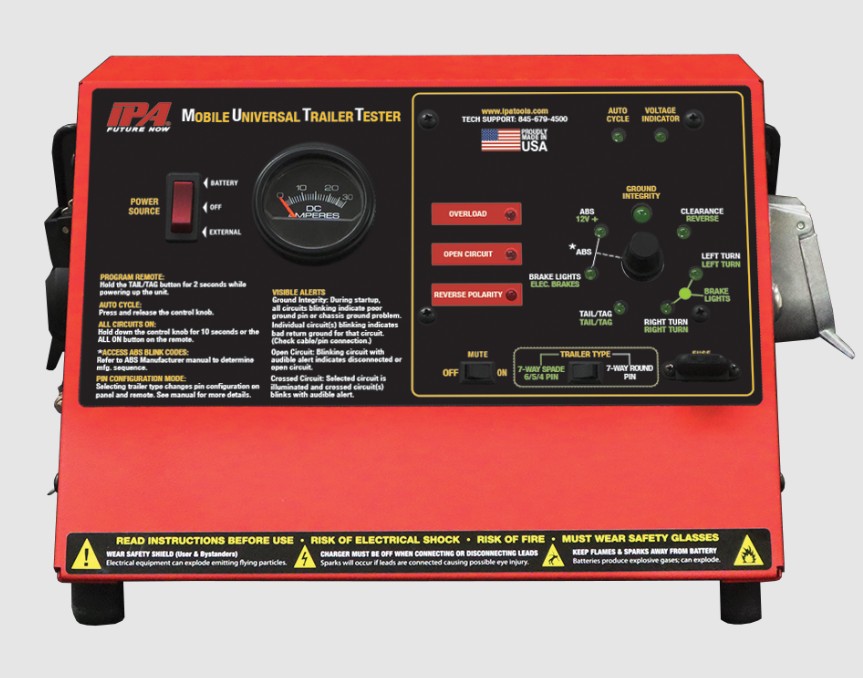

Innovative Products Of America 4105 | Smart MUTT X (7-Way Spade, 7-Way Round, 6-Way Round, 5 and 4 Pin)
Innovative Products Of America - 4105 - Features
- ELECTRICAL TESTING(12/24V Operation):
- Power lights: Manually, All-On, Auto Scan, or Remote Control
- Audible and visual alerts: cross, open, overloaded and short circuit indication
- Pulsar Mode allows for chasing down short circuits without blowing fuses
- Advanced trailer wiring diagnostics
- Analog Ammeter Readout 0-20 Amps
- Remote control allows for one-man testing
Innovative Products Of America - 4105 - Includes
- 12-Button Remote Control (#MUT-RM12-4A)
- 500mA Battery Charger (#CHR0001)
- 3-Way Trailer Adapter (#8000)
Innovative Products Of America - 4105 - Specifications
| Brand Name | Innovative Products Of America |
| Manufacturer Part number | 4105 |
| UPC | 893509003623 |
| Connection Type | 7-Way Flat (Spade), 7-Way Round, 6-Way Round and 4/5 Pin |
| Power Input | 12/24V DC |
| Battery Requirements (Battery Not Included) | Yuasa #YTX14 or Similar Recommended |
| Source Output | 20A @ 12/24V DC |
| Controls | Manual, Remote, Automatic |
| Material | Powder-Coated Steel |
| Weight | 11.5 lbs. |
| Dimensions | 12" L x 9.5" W x 9" H |
| Warranty | 3-Year Limited Warranty |
| CoO | USA |
Innovative Products Of America - 4105 - Documents and Downloads
| Innovative Products Of America 4105 Sell Sheet | Click to View |
| Innovative Products Of America 4105 Manual | Click to View |
| Innovative Products Of America 4105 Comparison Chart | Click to View |
| Innovative Products Of America 4105 Trailer Tester Catalog | Click to View |
