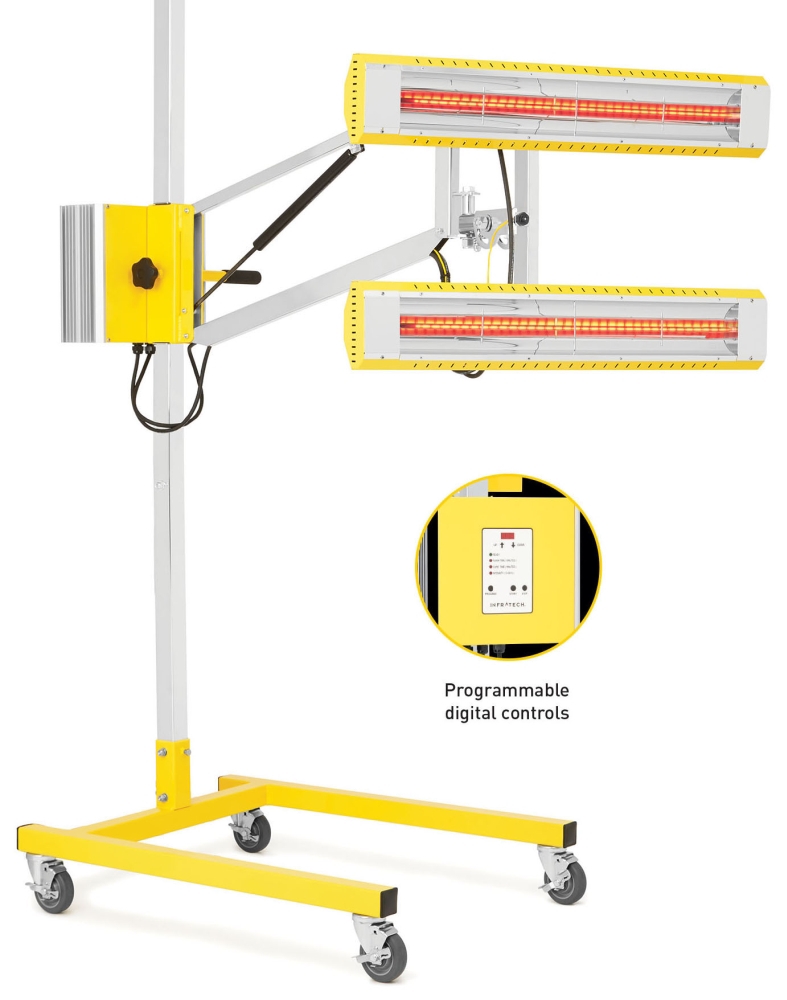

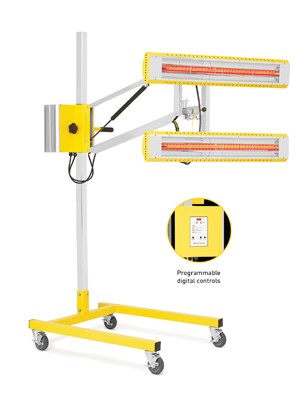

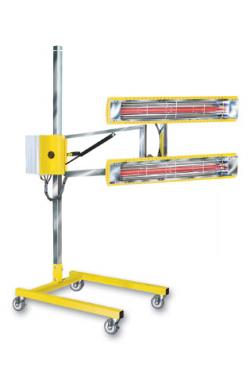

Infratech 17-1240 | SR-4000 Iridium Short Wave 4,000 Watt Infrared Curing System

4000 WATT 240V

Infratech - 17-1240 - Features

• Exclusive new iridium enhanced quartz halogen element
• 4000 watts of short wave infrared
• Speed curing time 60 to 80 Percent faster
• 4 Foot x 4 Foot coverage area
• Solid state programmable control
• Infrared sensor provides precise control
• Energy efficient
• New iridium short wave 4000 W unit offers faster cure times
• Solid state programmable controls feature electronic timer
• Iridium enhanced quartz halogen element focuses more energy into curing and less into visible light
• Large 4 x 4 ft coverage area enables product to accommodate complete panel repairs
• Parabolic reflectors create uniform heat distribution
• Adjustable shock arm extends to over 7 ft high, to provide safe, easy reach for curing hoods and roof sections
• Product design features stand with narrow foot print and locking casters
• Product is equipped with 25 ft power cord

Infratech - 17-1240 - Additional Information

• Short Wave Curing System
• Item Short Wave Curing System
• Length 36 Inch
• Voltage Rating 240 Volt AC 1 Phase
• Current Rating 16.7 Amp
• Power Rating 4000 Watt
• Applicable Standard UL

Infratech - 17-1240 - Specifications

Order Part Number	IF17-1240
Item Description	"Shotwave Iridium 4000W 240V 36"
Manufacturer Long Name	Infratech
Manufacturer Part Number	17-1240
Product Group Id	IF00
Country of Origin	US
Harmonization Code	85162900
MS Bin Code	GC131
Default Selling Unit	EA
UNSPSC	31211900
Dimensions	36 in L
Type	Standard
Part no.	17-1240
Alternate Part Number-1	SR-4000
MFR Model	17-1240
Amperage Rating	16.7 A
Standard/Approvals	California Pro65 Warning: Cancer and Reproductive Harm | UL Listed
Wattage (W)	4000

Infratech - 17-1240 - Package Information

Shipping Weight

170.000 Pound

Infratech - 17-1240 - Documents and Downloads

Infratech 17-1240 Catalog Pages	Click to View
Infratech 17-1240 Specification Sheet	Click to View
