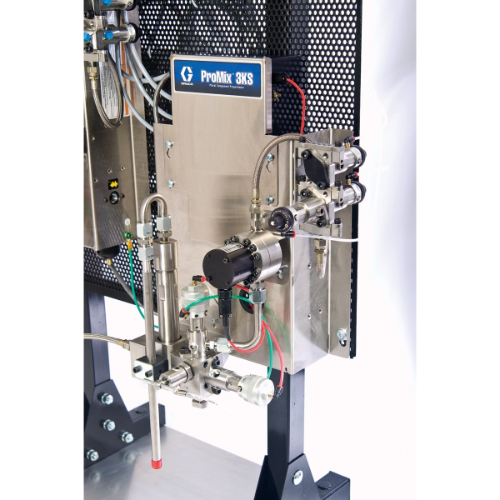

Graco Industrial TK3300 | ProMix 3KS Proportioner, 1/4" Coriolis Meter, 2 Colors High Pressure

ProMix 3KS offers precision mixing of a broad range of three component materials, even tough acid catalysts. It accurately reduces your material to the correct spray viscosity as conditions change with the highest degree of ratio assurance for superior quality on both manual and automatic applicatio...

Graco Industrial - TK3300 - Features

• ProMix 3KS offers precision mixing of a broad range of three component materials, even tough acid catalysts. It accurately reduces your material to the correct spray viscosity as conditions change with the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.
• Purchase with a ProMix 2KS system or upgrade an existing 2KS system
• Advanced web interface provides consolidated system management and reporting
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Simple programming allows fast set up and efficient process control

Graco Industrial - TK3300 - Technical Specifications

Air Inlet Size (in)	3/8"
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Amperage (A)	2
Component Type	Three Component
Fluid Inlet Size (in)	1/4"
Fluid Inlet Thread Gender	Female
Fluid Inlet Thread Type	NPT
Fluid Outlet Size (in)	1/4"
Fluid Outlet Thread Gender	Female
Fluid Outlet Thread Type	NPT
Flush Type	Air/Solvent
Frequency (Hz)	50/60
Gun Activation	Manual
Material Type	Three Component
Maximum Flow Rate (GPM)	1
Maximum Fluid Viscosity (cP)	3000
Maximum Mix Ratio	1900-01-02 02:01:00
Maximum Number of Colors	Up to 25
Maximum Operating Temperature (°F)	122
Maximum Working Pressure (MPa)	15.9
Maximum Working Pressure (psi)	2300
Measuring Type	Meter
Meter Type	Coriolis
Minimum Flow Rate (GPM)	0.005
Minimum Fluid Viscosity (cP)	0.1
Minimum Mix Ratio	0.1:1
Mix Accuracy (%)	1
Model	ProMix
Number of Catalysts	4
Number of Color Valves	2 Valves
Number of Colors	2
Number of Reducers	4
Number of Resin Colors	2
Power Source	Electric
Pressure Type	High Pressure
Proportioning Type	Manual Electronic, Automatic Electronic
Series	3KS
Sound Power Level (dB(A))	85
Sound Pressure Level (dB(A))	70
Type	Proportioning System
Wetted Material	Perfluoroelastomer, PTFE, Stainless Steel, Tungsten Carbide

Graco Industrial - TK3300 - Documents and Downloads

Graco Industrial TK3300 Product Brochure	Click to View
313885F, ProMix 3KS Operation Manual, for Automatic Systems, English	Click to View
313883C, ProMix 3KS Repair-Parts Manual, US English	Click to View
339996EN ProMix 2KS and 3KS Proportioning Systems	Click to View
