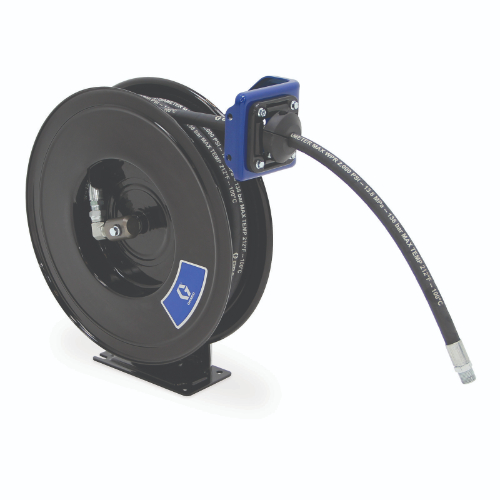

Graco Industrial SDM65B | SDX 20, Oil, 1/2" (13 mm) Inlet, 1/2" X 50 ft (13 mm X 15 m) Hose, NPT, Overhead Mount, Metallic Blue

Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors

Graco Industrial - SDM65B - Features

• Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors
• With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.
• Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
• Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look.
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Adjustable Arm - Easily change the arm position for your application
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
• Durable Finish - Baked-on enamel finish protects reel from corrosion

Graco Industrial - SDM65B - Specifications

Order Part Number	GRASDM65B
Item Description	SDX 20, Oil, 1/2" (13 mm) Inlet, 1/2" X 50 ft (13 mm X 15 m) Hose, NPT, Overhead Mount, Metallic Blue
Product Group Id	GRA00
MS Bin Code	FC0340
Default Selling Unit	EA

Graco Industrial - SDM65B - Technical Specifications

Application	Oil
Color	Metallic Blue
Frame Type	Single Pedestal
Hose Inside Diameter (in)	1/2"
Hose Length (ft)	50
Hose Reel Type	Reel with Hose
Includes Hose	Yes
Inlet Size (in)	1/2"
Inlet Thread Gender	Male
Inlet Thread Type	NPSM
Maximum Temperature (°F)	190
Maximum Working Pressure (psi)	2000
Minimum Temperature (°F)	-20
Model	SDX
Mount Location	Overhead Mount
Outlet Size (in)	1/2"
Outlet Thread Gender	Male
Outlet Thread Type	NPT
Overall Height (in)	21.8
Overall Length (in)	19.2
Overall Width (in)	7
Recommended Environment	Indoor, Limited Outdoor
Recommended Fluid Type	Oil
Reel Thread Type	NPT
Series	20
Type	Spring-Rewind Reel
Wetted Parts	Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber
