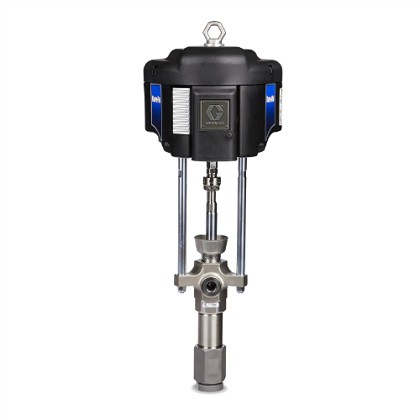

Graco Industrial P22LSM | 21:1 - 580cc Dura-Flo Pump with NXT6500 Air Motor, MaxLife Stainless Steel Construction

Graco’s Xtreme and Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

Graco Industrial - P22LSM - Features

• Graco’s Xtreme and Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
• Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
• High pump pressure and flow performance to handle a broad range of paints and coatings
• Improved serviceability with fewer parts, faster repairs and lower ownership cost
• NXT Air Motor
• Modular design for easier maintenance
• Rugged body armor won’t rust or dent
• Highest technology air motor on the market
• Low Noise exhaust style
• Modular Air Valve
• De-icing controls standard
• Up to 50% quieter than previous models
• Modular air valve - reduces stalling, easy-to-repair
• Optional Integrated Air Controls
• Lockable easy-turn regulator
• Front-mounted for convenient access
• Compact and modular
• Built-in filtration
• Optional DataTrak Control
• Runaway protection
• Pump diagnostics
• Material usage

Graco Industrial - P22LSM - Technical Specifications

Ambient/Warm Melt/Hot Melt	Ambient
Application	Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Compatible Material	CARC, High Solids, Metallics, Solventborne, Stains, Varnish, Xirallic
Fluid Inlet Size (in)	2
Fluid Inlet Thread Gender	Female
Fluid Inlet Thread Type	NPT
Fluid Outlet Size (in)	1-1/2"
Fluid Outlet Thread Gender	Male
Fluid Outlet Thread Type	NPT
Includes	Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
Material	Stainless Steel
Maximum Working Pressure (MPa)	15.7
Maximum Working Pressure (psi)	2270
Model	Dura-Flo
Power Type	Pneumatic
Pump Ratio	22:01:00
Type	Piston Pump Package

Graco Industrial - P22LSM - Documents and Downloads

Graco Industrial P22LSM Product Brochure	Click to View
308048N, Manual, Viscount II Hydraulic Motor, Instructions-Parts List, English	Click to View
308330L, Manual, Viscount I Hydraulic Motor, Instrucitons-Parts List, English	Click to View
344905EN Supply Pumps Brochure	Click to View
