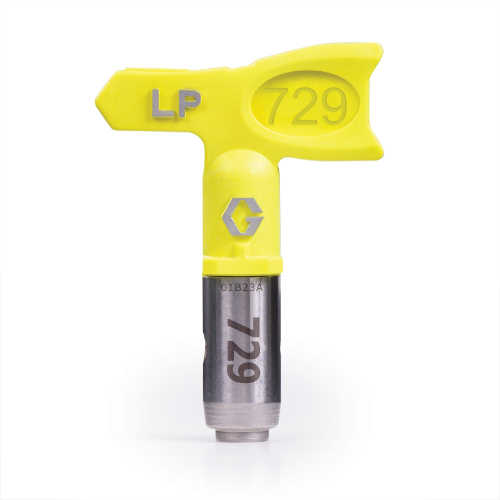

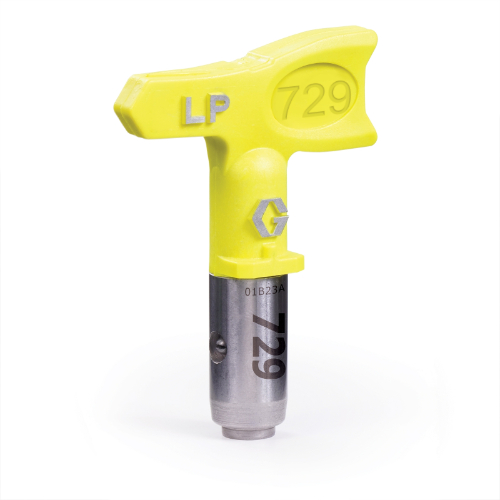

Graco Industrial LP729 | Low Pressure RAC X LP SwitchTip, 729

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 729 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 14 to 16 inch fan pattern and has a 0.029 inch orifice. Reverse the SwitchTip to easily clear clogs.

Graco Industrial - LP729 - Features

• Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 729 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 14 to 16 inch fan pattern and has a 0.029 inch orifice. Reverse the SwitchTip to easily clear clogs.
• For large surfance areas such as walls and ceilings
• Less Prep & Cleanup Time
• Less mess with less overspray
• Put the paint where you want it
• Easiest Pattern Overlap
• Softer spray fan pattern
• Easy to apply any material to any surfance
• Consistent blended finish quality
• Extended Life
• Spraying at half pressure doubles tip life
• Reduced sprayer maintenance – up to 2X life
• SmartTip Technology
• Exclusive internal tip geometry
• Reduces energy required to atomize paints, stains, and other materials
• Delivers a superior finish with less pressure
• Works with SmartControl on select Graco sprayers
• Best Tip on the Market
• Works with any airless sprayer
• Longest lasting fann pattern
• Highest quality finish with a consistent spray pattern
• Easy to Identify Tip Size
• Large raised tip size numbers are always legible – even when covered with paint
• Superior Tip Design
• Locking tab ensures tip stays securely in guard
• Snaps tip in spray or reverse position
• OneSeal tip gasket installs with no tools
• Solvent seal available when using extremely hot solvents

Graco Industrial - LP729 - Technical Specifications

For Use With	RAC X HandTite Tip Guard
Maximum Fan Width (in)	14
Maximum Working Pressure (psi)	4050
Minimum Fan Width (in)	14
Model	RAC X
Orifice Diameter (in)	0.029
Series	LP SwitchTip
Type	Spray Tip

Graco Industrial - LP729 - Documents and Downloads

Graco Industrial LP729 Product Brochure	Click to View
3A5432C, LP Warning Insert, English, Multilingual	Click to View
