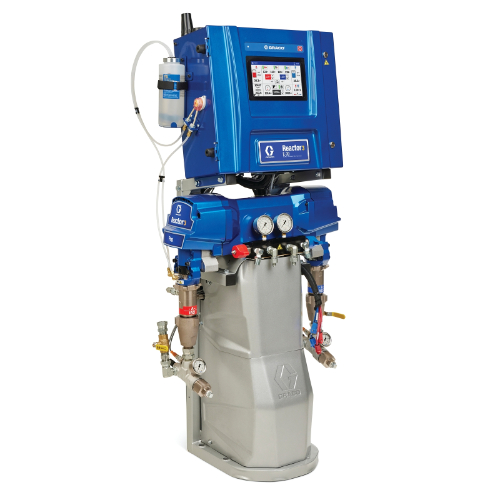

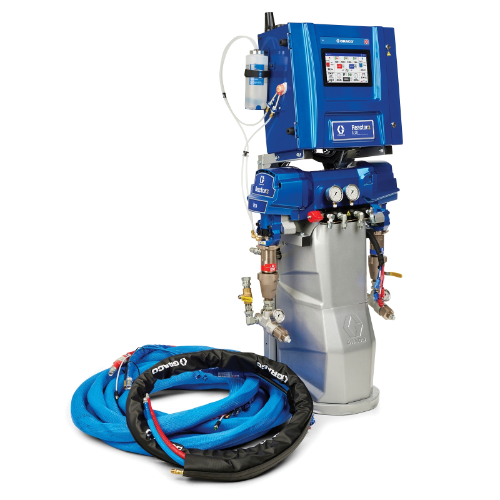

Graco Industrial ESR331 | Reactor 3 E-30 Pro Tier Spray Foam Proportioner Package, 50 ft External Heated Hose, 10 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Graco Industrial - ESR331 - Features

• Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.
• The E-30 is a spray foam system build for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features.
• Auto Pressure Balance
• Automatically adjusts temperatures to optimize fluid pressures and maximize yield
• Power Management
• Select desired heater wattage for reduced power consumption
• Cellular Software Updates
• Automatically stay up to date with the latest Reactor software
• Touchscreen Advanced Display Module (ADM)
• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Independent Hose Control
• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield
• Advanced Electric Design
• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• Reduced Size
• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

Graco Industrial - ESR331 - Technical Specifications

Amperage (A)	200-240
Frequency (Hz)	50/60
Hose Heating Type	External Heated
Hose Length (ft)	50
Maximum Flow Rate (lb/min)	30
Maximum Fluid Temperature (°F)	190
Maximum Spray Pressure (MPa)	14
Maximum Spray Pressure (psi)	2000
Model	Reactor 3
Overall Depth (in)	15
Overall Height (in)	56.5
Overall Width (in)	26.8
Power Rating (kW)	10
Product Series	Pro
Series	E-30
Transfer Pump	No Transfer Pump
Type	Proportioner Package
Weight (lb)	325
