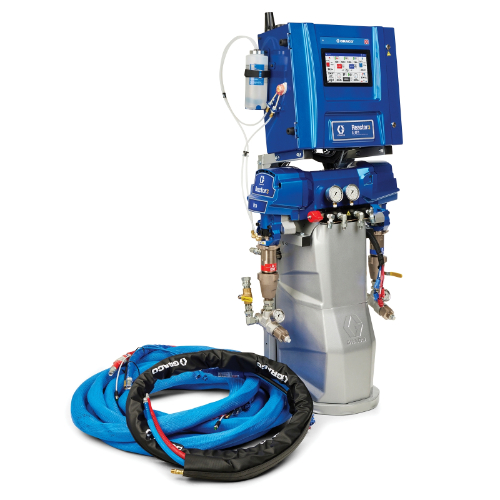

Graco Industrial ESR321 | Reactor 3 E-XP1 Pro Tier Polyurea Proportioner Package, 50 ft External Heated Hose, 10 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Graco Industrial - ESR321 - Features

• Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.
• The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business, it is a great starter machine. Due to the smaller heaters the E-XP1 is also a good choice for contractors in tempered climates where larger heaters are not required.
• Auto Pressure Balance
• Automatically adjusts temperatures to optimize fluid pressures and maximize yield
• Power Management
• Select desired heater wattage for reduced power consumption
• Cellular Software Updates
• Automatically stay up to date with the latest Reactor software
• Touchscreen Advanced Display Module (ADM)
• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Independent Hose Control
• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield
• Advanced Electric Design
• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• Reduced Size
• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

Graco Industrial - ESR321 - Technical Specifications

Amperage (A)	200-240
Frequency (Hz)	50/60
Hose Heating Type	External Heated
Hose Length (ft)	50
Maximum Flow Rate (GPM)	1
Maximum Fluid Temperature (°F)	190
Maximum Spray Pressure (MPa)	20.7
Maximum Spray Pressure (psi)	3000
Model	Reactor 3
Overall Depth (in)	15
Overall Height (in)	56.5
Overall Width (in)	24.9
Power Rating (kW)	10
Product Series	Pro
Series	E-XP1
Transfer Pump	No Transfer Pump
Type	Proportioner Package
Weight (lb)	260

Graco Industrial - ESR321 - Documents and Downloads

Graco Industrial ESR321 Product Brochure	Click to View
3A8500E, Manual, Reactor 3 Proportioning Systems, Operation, English	Click to View
3A8501G, Manual, Repair, Reactor 3 Proportioning Systems, English	Click to View
3J0315EN-C Reactor 3 Brochure	Click to View
307765, Throat Seal Liquid, TSL, Safety Data Sheet, English	Click to View
MSD049, DE-OX-5CC, DE-OX-1GAL Corrosion Inhibitor, Safety Data Sheet, English	Click to View
MSD181EN, Shell Gadus S3 V220C 2, Safety Data Sheet, English	Click to View
MSD188EN, Shell Gadus S3 V220C 2, Safety Data Sheet, English	Click to View
