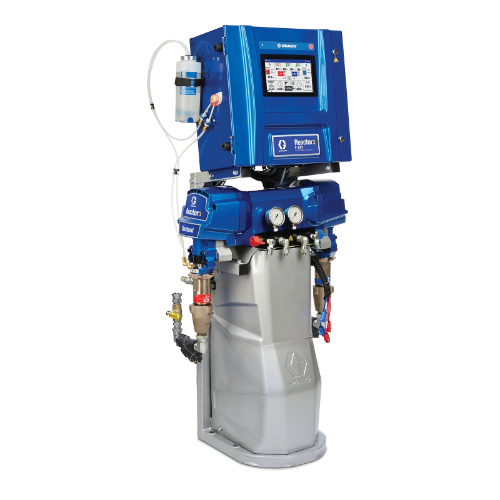

Graco Industrial EHR340 | Reactor 3 E-XP2 Standard Tier Polyurea Proportioner Package, 200 ft External Heated Hose, 15 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Graco Industrial - EHR340 - Features

• Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.
• The E-XP2 is a polyurea system build for customers looking for a machine with more output and capabilities. It is ideal for use on medium to large jobs and applications. The E-XP2 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features.
• ISO Lube Pump
• Active ISO Lube system with peristaltic pump
• Automatic timed circulation improves TSL Life
• Reduced maintenance (No check valves)
• New larger easy-to-change ISO lube bottle
• Touchscreen Advanced Display Module (ADM)
• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Independent Hose Control
• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield
• Advanced Electric Design
• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostic
• Reduced Size
• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

Graco Industrial - EHR340 - Technical Specifications

Amperage (A)	200-240
Frequency (Hz)	50/60
Hose Heating Type	External Heated
Hose Length (ft)	200
Maximum Flow Rate (GPM)	2
Maximum Fluid Temperature (°F)	190
Maximum Spray Pressure (MPa)	24.1
Maximum Spray Pressure (psi)	3500
Model	Reactor 3
Overall Depth (in)	15
Overall Height (in)	56.5
Overall Width (in)	26.8
Power Rating (kW)	15
Product Series	Standard
Series	E-XP2
Transfer Pump	No Transfer Pump
Type	Proportioner Package
Weight (lb)	315

Graco Industrial - EHR340 - Documents and Downloads

Graco Industrial EHR340 Product Brochure	Click to View
3A7683G, Manual, Reactor 3 Heated Hose, Instructions, English	Click to View
3J0315EN-C Reactor 3 Brochure	Click to View
307765, Throat Seal Liquid, TSL, Safety Data Sheet, English	Click to View
MSD181EN, Shell Gadus S3 V220C 2, Safety Data Sheet, English	Click to View
MSD188EN, Shell Gadus S3 V220C 2, Safety Data Sheet, English	Click to View
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English	Click to View
