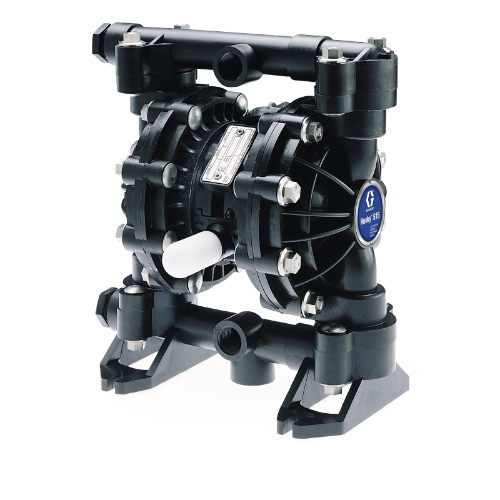

Graco Industrial D51311 | Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.




https://www.autotoolworld.com/assets/icons/features.jpg

Graco Industrial - D51311 - Features

  • The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
  • The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Delivery up to 15 gpm (56.7 lpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance



https://www.autotoolworld.com/assets/icons/specs.jpg

Graco Industrial - D51311 - Technical Specifications

Air Exhaust Port Size (in)3/8"
Air Exhaust Port Thread GenderFemale
Air Exhaust Port Thread TypeNPT
Air Inlet Size (in)1/4"
Air Inlet Thread GenderFemale
Air Inlet Thread TypeNPT
ApplicationIndustrial
Ball MaterialPTFE
Center Section MaterialPolypropylene
Compatible MaterialAntifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
Connection TypeThreaded
Diaphragm Compatible MaterialPTFE
Diaphragm MaterialPTFE/EPDM 2-Piece
Fluid Inlet Size (in)1/2"
Fluid Inlet Thread GenderFemale
Fluid Inlet Thread TypeNPT
Fluid Outlet Size (in)1/2"
Fluid Outlet Thread GenderFemale
Fluid Outlet Thread TypeNPT
Fluid Section MaterialAcetal
Manifold ConfigurationCenter Port
Manifold O-Ring MaterialPTFE
MaterialAcetal
Maximum Air Consumption (SCFM)28
Maximum Air Pressure (MPa)0.7
Maximum Air Pressure (psi)100
Maximum Cycle Rate (CPM)400
Maximum Flow Rate (GPM)15
Maximum Fluid Pressure (MPa)0.7
Maximum Fluid Pressure (psi)100
Maximum Operating Temperature (°F)180
Maximum Solid Size (in)0.09375
Minimum Operating Temperature (°F)40
ModelHusky
Overall Height (in)10.63
Power SourceAir
Seat MaterialStainless Steel
Series515
Standards MetATEX, CE
TypePneumatic Diaphragm Pump
Weight (lb)7.8



https://www.autotoolworld.com/assets/icons/pdf.jpg

Graco Industrial - D51311 - Documents and Downloads

Graco Industrial D51311 Product BrochureClick to View
308981ZBB, Manual, Air-Operated Diaphragm Pumps, Instructions, EnglishClick to View
