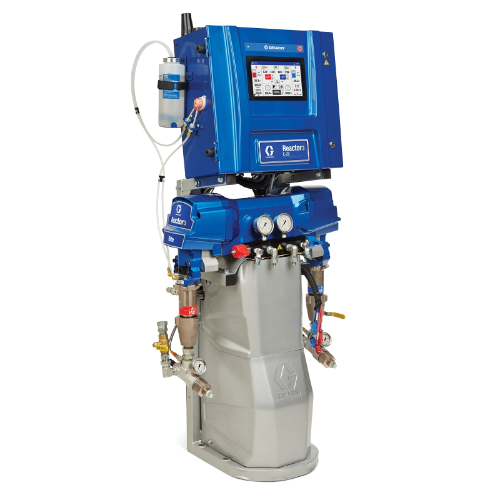

Graco Industrial CHR312 | Reactor 3 E-20 Elite Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 10 kW, E1 Transfer Pump

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Graco Industrial - CHR312 - Features

• Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.
• The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required.
• Katalyst
• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps
• Supply Pump Shutdown
• Automatically shuts down when you run out of material.
• Prevents air from entering the system that can cause off-ratio issues. * Requires Core E1 pumps
• Smart Supply
• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials
• Auto Pressure Balance
• Automatically adjusts temperatures to optimize fluid pressures and maximize yield
• Power Management
• Select desired heater wattage for reduced power consumption
• Cellular Software Updates
• Automatically stay up to date with the latest Reactor software
• Touchscreen Advanced Display Module (ADM)
• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Independent Hose Control
• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield
• Advanced Electric Design
• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• Reduced Size
• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

Graco Industrial - CHR312 - Technical Specifications

Amperage (A)	200-240
Frequency (Hz)	50/60
Hose Heating Type	Internal Heated
Hose Length (ft)	200
Maximum Flow Rate (lb/min)	20
Maximum Fluid Temperature (°F)	190
Maximum Spray Pressure (MPa)	14
Maximum Spray Pressure (psi)	2000
Model	Reactor 3
Overall Depth (in)	15
Overall Height (in)	56.5
Overall Width (in)	24.9
Power Rating (kW)	10
Product Series	Elite
Series	E-20
Transfer Pump	Includes Core E1
Type	Proportioner Package
Weight (lb)	260
