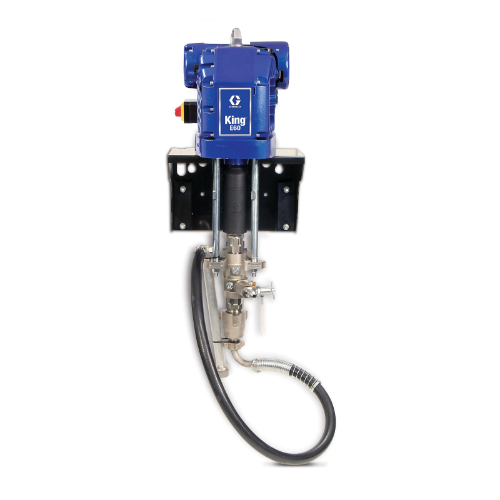

Graco Industrial 273251 | King E60 Hazardous Location Wall Mount Integrated Filter BARE

The Graco King E-series Electric Airless Sprayer is for protective coatings and select models have been approved for hazardous locations. The King E-series operates on a more reliable, convenient and available electric power source, which removes job site reliance on compressed air. Furthermore, ele...

Graco Industrial - 273251 - Features

• The Graco King E-series Electric Airless Sprayer is for protective coatings and select models have been approved for hazardous locations. The King E-series operates on a more reliable, convenient and available electric power source, which removes job site reliance on compressed air. Furthermore, electric technology reduces pulsation and eliminates motor icing, making your jobs run smoother every single time.
• The superior electric solution for spraying protective coatings
• Electric
• When wired correctly, electric power is safe, reliable and convenient for you and your customers. Free your operation from the reliability of an air compressor. The days of essential maintenance on large-scale compressors are over.
• No Icing
• By eliminating the need for an air motor, icing is a historic problem. More prevalent in conditions with a high level of humidity, icing of an air motor results in a slowing of the motor and loss of pressure which can be detrimental to your production rates.
• Reduced Noise
• No matter the application, noise exposure can dramatically affect your working conditions. The quiet electric motor improves working conditions significantly. When compared to an air motor, the King E-series is up to 5X quieter.
• Plug-in & Spray
• The King E-series runs on multiple power options (120V or 240V). Able to handle Graco’s most popular airless spray tip sizes with a consistent pattern thanks to the low rate of pulsation. This smooth pattern is noticeable at the gun.
• ATEX Approved
• Get the job done safely: compared to other electric sprayers, the King E-series is approved for hazardous locations. ATEX, IECEx, and Class 1, Div. 1 approvals* mean this KING can be used in chemical plants, paint shops, refineries, off-shore, or any location where generating a spark is of concern.
• Energy Savings
• With improved efficiency and an overall lower cost of ownership, the King E-series is the most cost-effective solution when compared to pneumatic airless sprayers. The King E-series saves up to 80% of energy costs when compared to an air operated sprayer
• Three-Year Limited Warranty
• Every piece of equipment we manufacture comes with one of the industry’s strongest warranties. The King E-series offer a three-year warranty on the gear train, chassis, and electric motor. Electronics cover and all other King E-series driver parts are covered by the standard one-year warranty.

Graco Industrial - 273251 - Technical Specifications

Amperage (A)	120V/25A, 240V/15A
Approved for Hazardous Locations	Yes
Compatible Material	Protective Coating
Control Type	Pressure Control Knob
Fluid Inlet Size (in)	1
Fluid Inlet Thread Gender	Male
Fluid Inlet Thread Type	NPT
Fluid Outlet Size (in)	1/2, 3/8
Fluid Outlet Thread Gender	Male
Fluid Outlet Thread Type	NPT
Frame Configuration	Wall Mount
Frequency (Hz)	50/60
Gun Included	0
Gun Model	No Applicator
Hose Inlet Diameter (in)	3/8"
Inlet Paint Strainer	8 Mesh, 16 Mesh
Lower Configuration	Integrated Filter
Lower Type	115cc Xtreme Duty Lower
Material Application	Protective Coatings
Maximum Continuous Cycle Rate (CPM)	44
Maximum Flow Rate (GPM)	0.7
Maximum Fluid Working Pressure (psi)	6000
Maximum Hose Length (ft)	210
Maximum Operating Temperature (°F)	120
Maximum Sound Pressure Level (dB(A))	77
Maximum Tip Size (in)	0.021
Maximum Working Pressure (MPa)	42
Maximum Working Pressure (psi)	6000
Minimum Generator Power (W)	5000
Minimum Generator Power (kW)	5
Minimum Hose Inside Diameter (in)	0.375
Minimum Hose Length (ft)	50
Minimum Operating Temperature (°F)	23
Model	King
Motor Type	Electric, Hazardous Locations
Number of Guns	2023-02-01 00:00:00
Outlet Paint Filter	60 Mesh
Phase	1
Power Source	Electric
Pressure Control Type	Electric Control Knob
Product Type	Single Leg
Pump Ratio	60:1 (6000 psi)
Pump Rod Type	Chromex
Pump Sleeve Material	Hard Chrome, Stainless Steel
Pump Type	Pneumatic Piston Pump
Series	E60
Type	Airless Sprayer
Weight (lb)	295
Wetted Material	Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum
