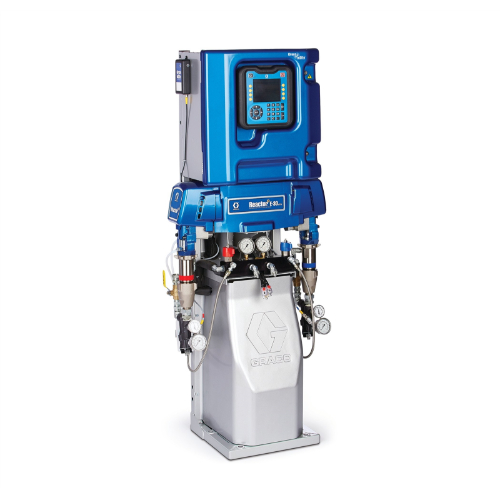

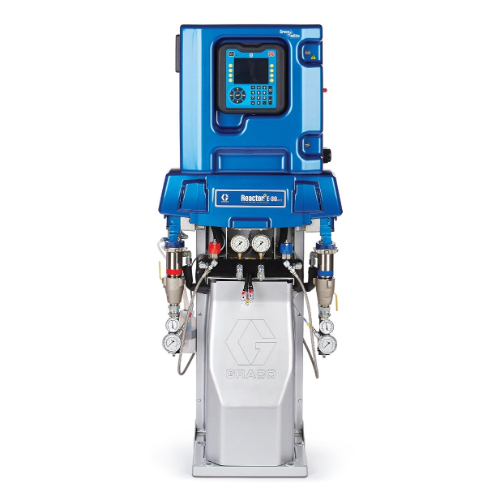

Graco Industrial 272110 | Reactor 2 E-30 Elite Proportioner, 10 kW

Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.

Graco Industrial - 272110 - Features

• Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.
• Next generation technology for spray foam insulation and polyurea.
• Reactor 2 E-30 gives you:
• Compact footprint - more room in your spray rig
• Ergonomic design - easier to service
• Advanced control modules
• Better spraying performance compared to traditional electric Reactor systems
• Troubleshooting made quick and easy with QR codes
• Reactor Connect : Communication and Control at your Fingertips
• Control your Reactor using your phone
• Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
• Monitor your rigs/crews using the multi-system dashboard
• Troubleshoot an issue quickly using real-time data
• Provide documentation to a customer
• Use reports to better manage your business
• Saves all your spray data to the cloud
• Utilize account management to better manage your equipment and crews
• Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
• Tracks, monitors and saves project data
• Data can be saved and downloaded onto a USB drive
• Stores up to 24 chemical recipes
• Drum level indicators
• Quick and easy troubleshooting thanks to QR code shortcuts
• Results in less downtime
• Easy to reach, conveniently-placed electronics
• Advanced control modules
• Handles power fluctuations
• Sacrificial surge protector
• Protects your electronics against excessive power spikes
• Smooth, consistent spray performance - similar to hydraulic systems
• Three-year warranty
• Covers user display module, control modules and electric motor
• One of the best in the industry

Graco Industrial - 272110 - Technical Specifications

Amperage (A)	34 @ 350 to 415 V ac (3-Phase WYE), 50 @ 200 to 240 V ac (3-Phase Delta), 78 @ 200 to 240 V ac (1-Phase)
Application	Spray Foam
Applicator Type	Manual
Compatible Material	Plural Components
Component Type	Two Component
Flush Type	Solvent
Frequency (Hz)	50/60
Gun Type	No Gun
Hose Package	No Hose
Material Application	Polyurethane Foam
Maximum Flow Rate (lb/min)	30
Maximum Fluid Temperature (°F)	190
Maximum Hose Length (ft)	310
Maximum Mix Ratio	01:01:00
Maximum Working Pressure (MPa)	13.8
Maximum Working Pressure (psi)	2000
Model	Reactor 2
Overall Depth (in)	15
Overall Height (in)	63
Overall Width (in)	26.3
Power Rating (HP)	13.68
Power Rating (W)	10200
Power Rating (kW)	10
Power Source	Electric
Pressure Type	High Pressure
Product Series	Elite
Product Type	Plural Component
Resin Inlet Size (in)	3/4"
Resin Inlet Thread Gender	Female
Resin Inlet Thread Type	NPSM
Series	E-30
Sound Pressure Level (dB(A))	87.3
Type	Proportioner Package
Voltage (V)	230, 400
Weight (lb)	355
Wetted Material	Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Chemically Resistant O-Rings, PTFE, UHMWPE

Graco Industrial - 272110 - Documents and Downloads

Graco Industrial 272110 Product Brochure	Click to View
333024U, Manual, Reactor 2 E-30 and E-XP2 Proportioning System, Repair-Parts, English	Click to View
309572ZAT, Manual, Power-Lock Heated Hose, Instructions, English	Click to View
300615EN, Reactor Spray Foam and Polyurea Equipment Brochure	Click to View
307765, Throat Seal Liquid, TSL, Safety Data Sheet, English	Click to View
MSD181EN, Shell Gadus S3 V220C 2, Safety Data Sheet, English	Click to View
MSD188EN, Shell Gadus S3 V220C 2, Safety Data Sheet, English	Click to View
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English	Click to View
