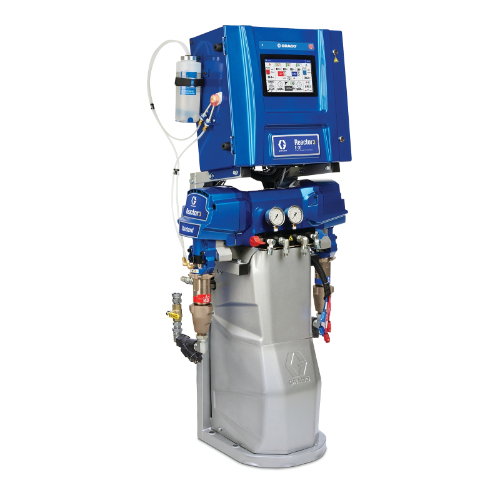

Graco Industrial 26R330 | Reactor 3 E-30 Standard Tier Spray Foam Proportioner, 10 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Graco Industrial - 26R330 - Features

• Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.
• The E-30 is a spray foam system build for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features.
• ISO Lube Pump
• Active ISO Lube system with peristaltic pump
• Automatic timed circulation improves TSL Life
• Reduced maintenance (No check valves)
• New larger easy-to-change ISO lube bottle
• Touchscreen Advanced Display Module (ADM)
• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Independent Hose Control
• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield
• Advanced Electric Design
• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostic
• Reduced Size
• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

Graco Industrial - 26R330 - Technical Specifications

Amperage (A)	200-240
Frequency (Hz)	50/60
Hose Heating Type	No Hose
Hose Length (ft)	0
Maximum Flow Rate (lb/min)	30
Maximum Fluid Temperature (°F)	190
Maximum Operating Temperature (°F)	120
Maximum Spray Pressure (MPa)	14
Maximum Spray Pressure (psi)	2000
Model	Reactor 3
Overall Depth (in)	15
Overall Height (in)	56.5
Overall Width (in)	26.8
Power Rating (kW)	10
Product Series	Standard
Series	E-30
Transfer Pump	No Transfer Pump
Type	Proportioner Package
Weight (lb)	325

Graco Industrial - 26R330 - Documents and Downloads

Graco Industrial 26R330 Product Brochure	Click to View
3A8500E, Manual, Reactor 3 Proportioning Systems, Operation, English	Click to View
3J0315EN-C Reactor 3 Brochure	Click to View
