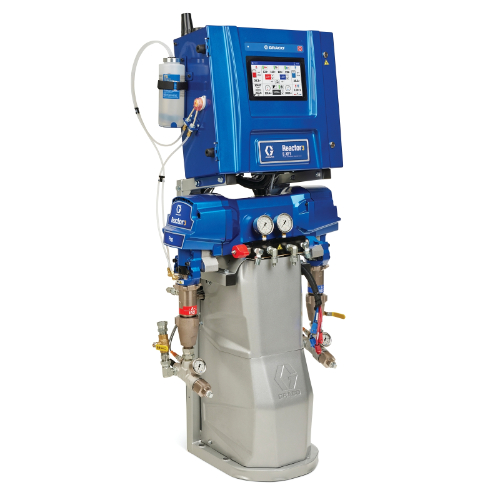

Graco Industrial 26R321 | Reactor 3 E-XP1 Pro Tier Polyurea Proportioner, 10 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Graco Industrial - 26R321 - Features

• Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.
• The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business, it is a great starter machine. Due to the smaller heaters the E-XP1 is also a good choice for contractors in tempered climates where larger heaters are not required.
• Auto Pressure Balance
• Automatically adjusts temperatures to optimize fluid pressures and maximize yield
• Power Management
• Select desired heater wattage for reduced power consumption
• Cellular Software Updates
• Automatically stay up to date with the latest Reactor software
• Touchscreen Advanced Display Module (ADM)
• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Independent Hose Control
• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield
• Advanced Electric Design
• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• Reduced Size
• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

Graco Industrial - 26R321 - Technical Specifications

Amperage (A)	200-240
Frequency (Hz)	50/60
Hose Heating Type	No Hose
Hose Length (ft)	0
Maximum Flow Rate (GPM)	1
Maximum Fluid Temperature (°F)	190
Maximum Operating Temperature (°F)	120
Maximum Spray Pressure (MPa)	20.7
Maximum Spray Pressure (psi)	3000
Model	Reactor 3
Overall Depth (in)	15
Overall Height (in)	56.5
Overall Width (in)	24.9
Power Rating (kW)	10
Product Series	Pro
Series	E-XP1
Transfer Pump	No Transfer Pump
Type	Proportioner Package
Weight (lb)	260

Graco Industrial - 26R321 - Documents and Downloads

Graco Industrial 26R321 Product Brochure	Click to View
3A8500E, Manual, Reactor 3 Proportioning Systems, Operation, English	Click to View
3A8501G, Manual, Repair, Reactor 3 Proportioning Systems, English	Click to View
3J0315EN-C Reactor 3 Brochure	Click to View
