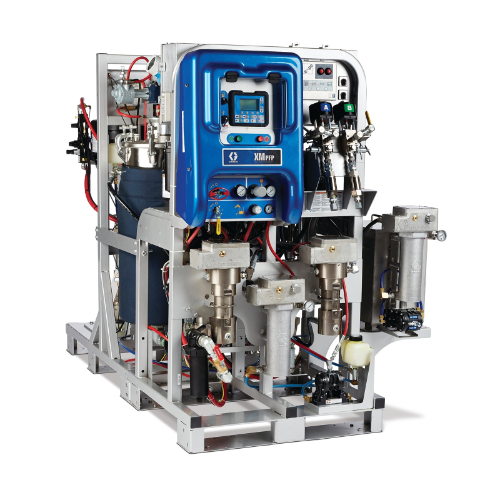

Graco Industrial 262945 | Complete XM PFP System for Explosive Atmospheres, 50ft Dual (3/4x3/4) Heated Hose, Mix Manifold, 17ft Static Mix Line, 30:1 Flush Pump, 429Tip
Graco Industrial 262945 | Complete XM PFP System for Explosive Atmospheres, 50ft Dual (3/4x3/4) Heated Hose, Mix Manifold, 17ft Static Mix Line, 30:1 Flush Pump, 429Tip
Accept Credit Cards
Official PayPal Seal

Graco Industrial 262945 | Complete XM PFP System for Explosive Atmospheres, 50ft Dual (3/4x3/4) Heated Hose, Mix Manifold, 17ft Static Mix Line, 30:1 Flush Pump, 429Tip

/assets/images/Graco_120px.png
Availability: In Stock
Part Number: GRA262945
0 Review(s)
Write a Review
$210,354.72
Retail Price:$240,645.80
Your Savings:$30,291.08(13%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Graco Industrial 262945 | Complete XM PFP System for Explosive Atmospheres, 50ft Dual (3/4x3/4) Heated Hose, Mix Manifold, 17ft Static Mix Line, 30:1 Flush Pump, 429Tip

Passive fire protection (PFP) coatings make structures more resistant to fire by insulating structural steel from high temperatures and as a result, buy time for the evacuation before structural collapse. The Graco XM PFP Plural-Component Sprayer offers data reporting technology, so you can confirm ...




https://www.autotoolworld.com/assets/icons/features.jpg

Graco Industrial - 262945 - Features

  • Passive fire protection (PFP) coatings make structures more resistant to fire by insulating structural steel from high temperatures and as a result, buy time for the evacuation before structural collapse. The Graco XM PFP Plural-Component Sprayer offers data reporting technology, so you can confirm that epoxy intumescent coatings are sprayed on-ratio, at requirements set by the manufacturer. The XM PFP is easy to use, maintains consistent temperature control and offers precise ratio control.



https://www.autotoolworld.com/assets/icons/specs.jpg

Graco Industrial - 262945 - Technical Specifications

Air Inlet Size (in)1
Air Inlet Thread GenderFemale
Air Inlet Thread TypeNPT
Amperage (A)63, 40
Applicator TypeManual
Compatible MaterialIntumescent Fireproofing Epoxy
Component TypePlural-Component
Flush TypeHot Water, Solvent
Gun TypeAirless Gun
Hose Length (ft)67
Includes(2) Heated PFP Hoses
Maximum Flow Rate (GPM)3
Maximum Mix Ratio1.5:1
Maximum Spray Pressure (MPa)41.4
Maximum Spray Pressure (psi)6000
Measuring TypePositive Displacement, Dosing Valve
Minimum Mix Ratio01:01:00
Mix Accuracy (%)+/- 5
Mix Ratio1.5:1
ModelXM
Number of Catalysts1
Number of Reducers0
Number of Resin Colors1
Number of Tanks2
Overall Depth (in)52, 104
Overall Height (in)70, 84
Overall Width (in)38, 76
Phase3
Power Rating (HP)25.34
Power Rating (W)18900
Power Rating (kW)18.8
Power SourceElectric, Air
Product TypePlural Component
SeriesPFP
Sound Pressure Level (dB(A))86
Tank Capacity (gal)20
TypeProportioning Package
Wetted MaterialAluminum, Stainless Steel, Carbide, PTFE, UHMWPE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather



https://www.autotoolworld.com/assets/icons/pdf.jpg

Graco Industrial - 262945 - Documents and Downloads

Graco Industrial 262945 Product BrochureClick to View
3A2989ZAD, XM PFP Plural-Component Sprayer, Repair and parts instructions, EnglishClick to View
306861ZAF, Manual, High Pressure Fluid Line Ball Valves, Check Valves, and Swivels, Instructions, Parts-List, EnglishClick to View
307005F, High Pressure Swivels, Instructions - Parts List, EnglishClick to View
349189EN, XM PFP for Explosive AtmospheresClick to View
MSD051, 542 Thread Sealant, Safety Data Sheet, EnglishClick to View
MSD130, Ethylene Glycol 50-50, Safety Data Sheet, EnglishClick to View
MSD196, ADHESIVE ANAROBIC, LOCTITE 242 THREADLOCKER, Safety Data Sheet, EnglishClick to View
MSD199, Loctite 222MS Low Strength Threadlocker, Safety Data Sheet, EnglishClick to View
