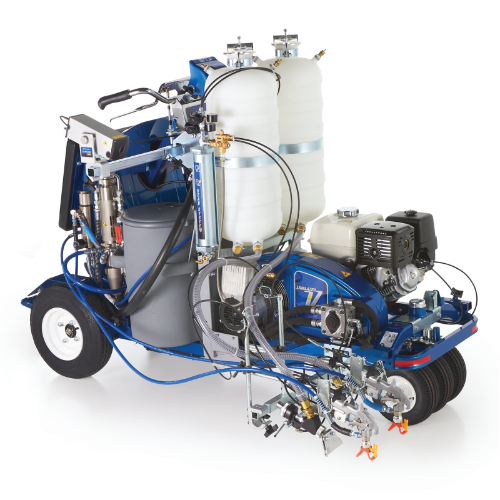

Graco Industrial 25D343 | LineLazer V 250DC HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 2 Tanks, LazerGuide 3000

The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.

Graco Industrial - 25D343 - Features

• The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.
• The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
• Pressurized EZ Bead System
• Superior Bead Application Performance
• Ensures proper bead flow and paint penetration
• Dual bead tanks hold up to 120 lbs each
• Dual High-Efficiency Hydraulic Motors
• Uninterrupted Performance
• No-Stall design
• Dual Endurance Chromex Pumps
• Precise Material Flow
• Consistency with a wide range of striping materials
• Automatic Paint Gun System
• Automatically Stripe Skip-Lines
• Reduce operator fatigue — push button line production
• Quality solenoid driven system
• LazerGuide 3000 Long-Line Lazer
• Easier, laser-straight lines
• Longer distance accuracy
• Highly-visible laser guise
• Faster, simple operation
• Remote Mount Control Box
• Striping Information At-A-Glance
• Simple to use and easy to see in all conditions
• Dual 15-Gallon Paint Hoppers
• Less refilling
• Simultaneously spray two colors and refill less often
• Honda GX Engine
• Reliable, Easy-to-Start Power
• Contractor-preferred — excellent power and proven reliability
• Oil Alert shuts down engine to prevent damage if oil level drops too low
• Electric Start
• Fast starting
• Additional Features
• EasyMark Gun Adjustment System
• Front or Rear Gun Mount
• Self-Centering Front Wheel
• Easy Handlebar Adjustment
• High-Capacity Cooling System
• Easy Out Pump Filter

Graco Industrial - 25D343 - Technical Specifications

Bead System	Pressurized Bead System
Bead Tank Size (lb)	240
Compatible Material	Road-Marking Paint
Compatible Surfaces	Pavement, Turf
Engine Brand	Honda
Engine Model	GX390
Features	SmartControl
Fuel Tank Capacity (gal)	1.4
Gun Activation	Automatic
Hopper Volume Capacity (gal)	30
Includes	LazerGuide 3000, Pressurized Bead System (2 Tanks), Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose (2), 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose (2), TSL, 4 oz (118 ml)
Maximum Flow Rate (GPM)	2.5
Maximum Tip Size (in)	0.055
Maximum Working Pressure (psi)	3300
Model	LineLazer V
Number of Colors	One Color
Number of Guns	2
Number of Hoppers	2
Number of Pumps	2
Power Rating (HP)	13
Power Rating (W)	9690
Power Rating (kW)	9.69
Power Source	Gas Hydraulic
Product Series	HP Reflective
Pump Type	Endurance
Series	250DC
Type	Self-Propelled Line Striper
Weight (lb)	864
